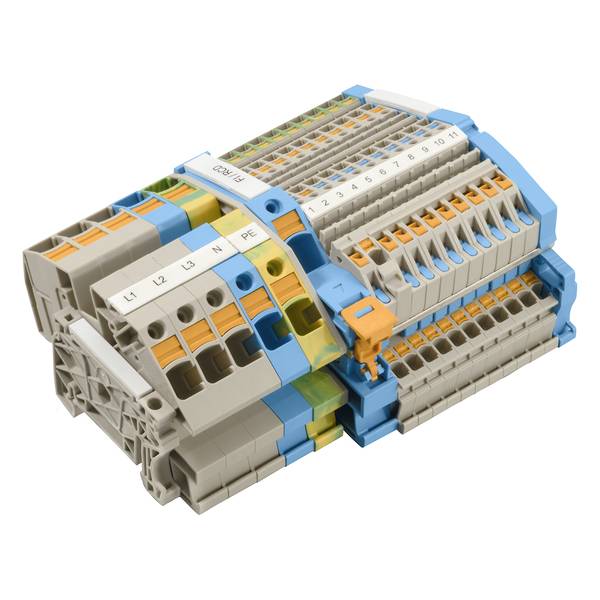

Weidmüller 8000122098 Multiport terminal Jack connector 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Multiport terminal
Connection
Jack connector
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
Highlights & Details
Multi-level terminal block, PUSH IN, other, 16 mm², number of connections: 65, Number of floors: 3, TS 35, V-0
- TR BD AITB BB 1RCD W/O TS
Technical specifications
- Packaging type
Piece
- Product type
Multiport terminal
- Connection
Jack connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
16 mm²
- No. of rows
3
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Manufacturer part #
8000122098
- Content
1 pc(s)
- Type
TR BD AITB BB 1RCD W/O TS
- Dim
(L x W) 50.1 mm x 132.3 mm
- Width
132.3 mm
- Length
50.1 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3752121 Weidmüller 8000122098 Multiport terminal Jack connector 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3752121 Weidmüller 8000122098 Multiport terminal Jack connector 1 pc(s) Piece
Description
Series terminal with several levels for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. Space-saving design.
