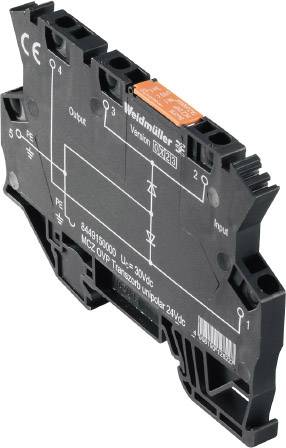

Weidmüller 8449150000 MCZ OVP TAZ DIODE 24VDC Surge arrester 10-piece set 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Weidmüller MCZ OVP TAZ over voltage protection diode 24VDC
- Narrow surge protection terminal with spring-cage connection
- 6 mm narrow overvoltage fine protection
- Fast wiring with TS contact and tension-spring connections
- Cross can be combined
Technical specifications
- Wire stripping length rated connection: 8 mm
- Connection type: Tension spring connection
- Design: Clamp
- Forward resistance 0.20 Ω
- Maximum continuous voltage, UC (AC) 30 V.
- Clamping range, max. 1.5 mm²
- Clamping range, min. 0.5 mm²
- Blade size 0.6 x 3.5 mm
- Storage temperature -40 °C to 85 °C.
- Conductor cross-section, single-wire, max. 1.5 mm²
- Conductor cross-section, fine strand, max. 1.5 mm²
- Conductor connection technology: Spring connection
- Nominal current IN 13 A.
- Net weight: 24.8 g
- Mounting rail TS 35
- Over voltage category III
- Pollution level 3
- Product type
Surge arrester
- Nominal voltage
24 V DC
- Pick-up time (details)
≤ 100 p s
- Operating temperature
-40 °C up to +60 °C
IP20
- Manufacturer part #
8449150000
- Type
MCZ OVP TAZ DIODE 24VDC
- Factory colour
Black
- Dim
(W x H x D) 6 x 91 x 63.5 mm
- Width
6 mm
- Height
91 mm
- Depth
63.5 mm
- Content
10 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1780741 Weidmüller 8449150000 MCZ OVP TAZ DIODE 24VDC Surge arrester 10-piece set 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1780741 Weidmüller 8449150000 MCZ OVP TAZ DIODE 24VDC Surge arrester 10-piece set 10 pc(s)
Description
Surge protection. MCZ-SERIES, measure, control, rules, 24V, MSR. Narrow surge protection terminal with spring-cage connection. 6 mm narrow overvoltage fine protection, fast wiring with TS contact and tension-spring connections, cross can be combined.
