Weidmüller 9200690000 Bullet connector 4 mm² 6 mm² Pin diameter: 5 mm Partially insulated Yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
Bullet connector
Min. cross section
4 mm²
max. cross section
6 mm²
Pin Ø
5 mm
Insulation type
Partially insulated
Datasheet (PDF)
Highlights & Details
Insulated round plug
Our service for you
Technical specifications
- Product type
Bullet connector
- Min. cross section
4 mm²
- max. cross section
6 mm²
- AWG max.
10
- AWG (min.)
12
- Pin Ø
5 mm
- Insulation type
Partially insulated
- Factory colour
Yellow
- Contact material
Brass tin plated
- Insulation material
PVC
- Content
100 pc(s)
- Manufacturer part #
9200690000
- Type
LID 6M5 R
- Industrial packaging
Yes
- Cross-section range
4 - 6 mm²
- RoHS-compliant
Yes
- Temperature range
+70 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 392435 Weidmüller 9200690000 Bullet connector 4 mm² 6 mm² Pin diameter: 5 mm Partially insulated Yellow 100 pc(s)
User & Safety Instructions
User & Safety Instructions 392435 Weidmüller 9200690000 Bullet connector 4 mm² 6 mm² Pin diameter: 5 mm Partially insulated Yellow 100 pc(s)
Description

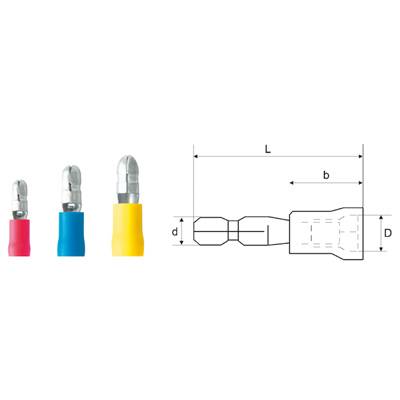

Insulated round plug made of PVC with copper-sleeve, yellow. Not soldered. With conical import funnel.
