Name: Weidmüller 9203100000 ERAN MULTI-STRIPAX Stop set Suitable for Cables with non-standard coatings 2.5 up to 6 mm² Suitabl
Brand: Weidmüller
SKU: 259487

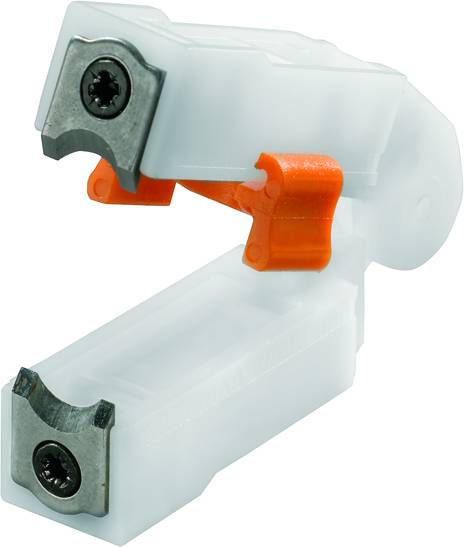

A white plastic plug with two visible screws and an open orange clip. Suitable for electrical connections.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ersatz-Anschlagset

System Multi-STRIPAX

Technical specifications

Max. cutting performance flat conductor 10.2 mm x 4 mm

Product type: Stop set

Suitable for: Cables with non-standard coatings

Working area (cross section): 2.5 up to 6 mm²

Working area cross section (min.): 2.5 mm²

Operating range (cross section) (max.): 6 mm²

Length: 250 mm

Suitable for: Weidmüller

Suited for model: 9202230000
9202210000
9202220000
9202250000

Width: 85 mm

Weight: 11.88 g

Features: Incl. cable cutter

Height: 30 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 259487 Weidmüller 9203100000 ERAN MULTI-STRIPAX Stop set Suitable for Cables with non-standard coatings 2.5 up to 6 mm² Suitabl

User & Safety Instructions

User & Safety Instructions 259487 Weidmüller 9203100000 ERAN MULTI-STRIPAX Stop set Suitable for Cables with non-standard coatings 2.5 up to 6 mm² Suitabl

Description

Ersatz-Anschlagset. For fine-stranded and solid conductors with special insulation materials. High stripping quality for industrial application (according to request from the aviation). Conductor insulation stripping knife enable the special special form and the conductor structures. Stripping length with stop can be set. High flexibility by interchangeable stripping units. High repeatability of the stripping results. No damage to the conductor. High stability for long life and high reliability. Integrated cutting function.
