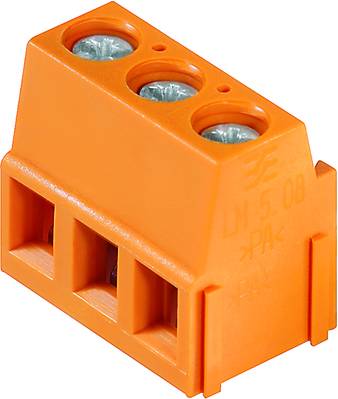

Weidmüller 9994150000 Screw terminal 2.5 mm² Number of pins 6 Orange 50 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
5.08 mm
Pins per row
6
Number of pins
6
Connection
Print
Screw terminal
Datasheet (PDF)
Highlights & Details
Screw terminal block
Our service for you
Technical specifications
- Type
LM 5.08/06/90 3.5SN OR BX
- Product type
Screw terminal
- CS
5.08 mm
- No. of rows
1
- Pins per row
6
- Number of pins
6
- Series
LM
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Print
Screw terminal
- Nominal current
15 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
15 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
24
- Connector orientation
Parallel (to the PCB)
- AWG max.
14
- Contact material
Cu-alloy, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Weight
7.6 g
- Manufacturer part #
9994150000
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
300 V
- Width
31.03 mm
- Height
17.3 mm
- Length
10 mm
- Type
LM 5.08/06/90 3.5SN OR BX
