Weidmüller Connector set RockStar® HDC HA 1884300000 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
PG16
Connection
Screws
Features
+ metal enclosure
powder-painted
+ PG screw
Series
RockStar® HDC HA
Datasheet (PDF)
Highlights & Details
Rock Star ® HDC-Kit
- 16.120 HDC-KIT-HA
Technical specifications
- Series: HA
- Surface: Powder coating
- Size: 5
- Connection type PE: Screw connection
- Tightening torque max. main contact: 0.55 Nm
- Tightening torque min. Main contact: 0.5 Nm
- Forward resistance: ≤ 2MΩ
- Slotted blade size (screw connection): SD 0.6 x 3.5
- Product type
Connector set
- Features
+ metal enclosure
powder-painted
+ PG screw
- Series
RockStar® HDC HA
- Thread size
PG16
- Connection
Screws
- Rated voltage
250 V
- Test current
16 A
- Case material
Aluminium, die cast
- Total no. of pins
16 + PE
- Content
1 pc(s)
- Core cross section (max.)
2.5 mm²
- Core cross section (min.)
0.5 mm²
- Number of pins
16
- Width
105 mm
- Height
130 mm
- Length
64 mm
IP65
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204551 Weidmüller Connector set RockStar® HDC HA 1884300000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204551 Weidmüller Connector set RockStar® HDC HA 1884300000 1 pc(s)
Description
Rock Star ® HDC-kit. Rock Star ® HDC-kits heavy plug connector, Kit, HA, size: 5, Pins: 16, screw connection, 250 V, 16 A, die-cast aluminum, PG. The Rock Star-kits usually consist of male insert, female insert, connector housing, connector housing and cable gland. Weidmüller offers you a selection of the common connector combinations with metric or PG cable input thread.
This text is machine translated.
This text is machine translated.

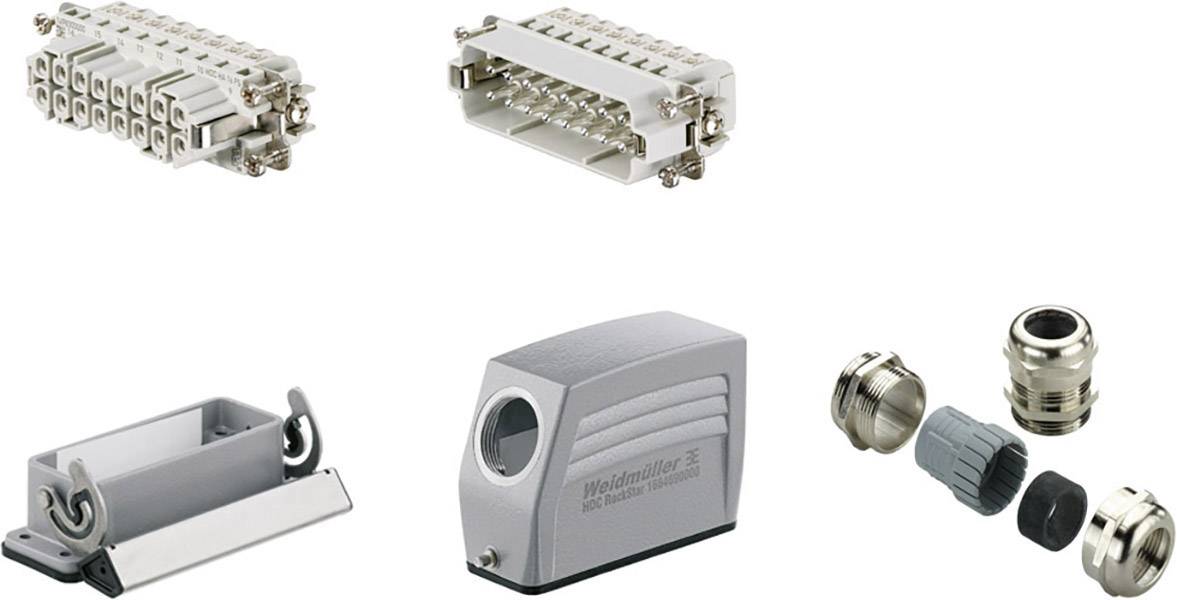

Scope of delivery
- Socket insert
- Connector insert
- Attachment housing
- Connector Cases
- Cable gland
