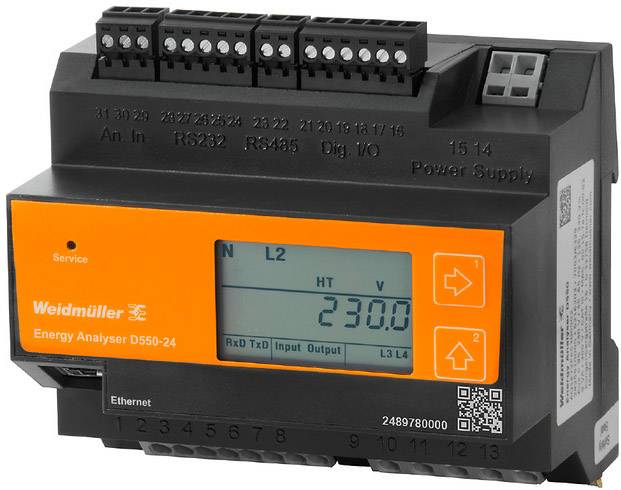

Weidmüller ENERGY ANALYSER D550-24 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Operating temperature: -10 °C - +55 °C
- Storage temperature: -25 °C - +70 °C
- Number of digital inputs: 2
- Number of digital outputs: 2
- Number of pulse outputs: 2
- Protocol: Modbus RTU, Modbus Gateway, Modbus TCP/IP, Modbus RTU over Ethernet, SNMP, BACnet (optional)
- Memory size: 128 MB
- Measurement accuracy at voltage: 0.2 %
- Measurement accuracy at current: 0.25 %
- Nominal current: 1 / 5 A.
- Product type
Digital rack-mount meter
- Reading type
AC voltage
Amperage
- Type
ENERGY ANALYSER D550-24
- Reading range (max.)
480 V
- Display technology
LCD
- Dim
(L x W x H) 46 x 107.5 x 90 mm
- Weight
265 g
- Max. operating voltage
50 V AC
70 V DC
- Min. operating voltage
20 V DC/AC
- Reading category
CAT III 300 V
- Width
107.5 mm
- Height
90 mm
- Length
46 mm
- Interfaces
RS232
RS485
- Interfaces
RS232
RS485
Ethernet
- UKCA
yes
