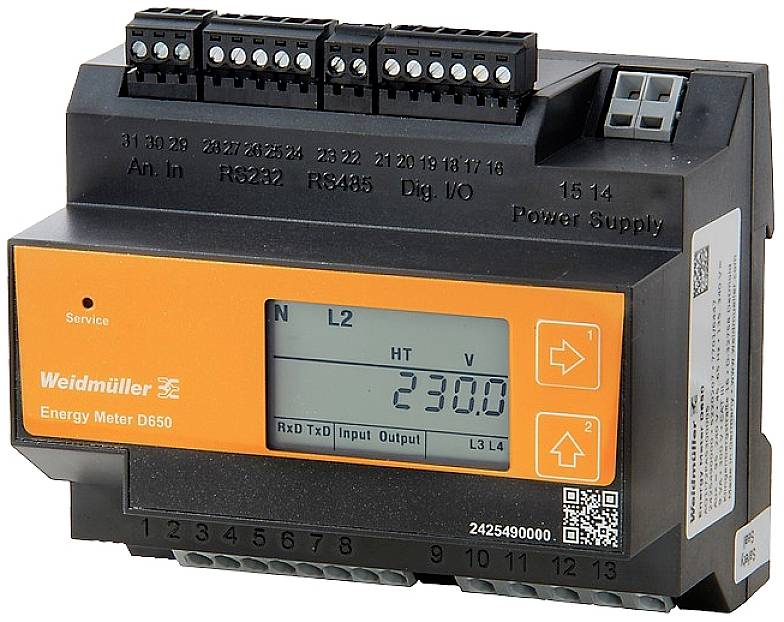

Weidmüller ENERGY METER D650 Digital rack-mount meter
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Operating temperature: -10 °C - +55 °C
- Storage temperature: -20 °C - +70 °C
- Number of digital inputs: 2
- Number of digital outputs: 2
- Number of pulse outputs: 2
- Protocol: Modbus RTU
- Memory size: 4 MB
- Measurement accuracy at voltage: 0.2 %
- Measurement accuracy at current: 0.25 %
- Nominal current: 1 / 5 A.
- Product type
Digital rack-mount meter
- Reading type
AC voltage
Amperage
- Type
ENERGY METER D650
- Reading range (max.)
480 V
- Display technology
LCD
- Dim
(L x W x H) 82 x 107.5 x 90 mm
- Weight
350 g
- Max. operating voltage
240 V AC
340 V DC
- Min. operating voltage
95 V AC
135 V DC
- Reading category
CAT III 300 V
- Width
107.5 mm
- Height
90 mm
- Length
82 mm
- Interfaces
RS232
RS485
- Interfaces
RS232
RS485
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1951772 Weidmüller ENERGY METER D650 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 1951772 Weidmüller ENERGY METER D650 Digital rack-mount meter
