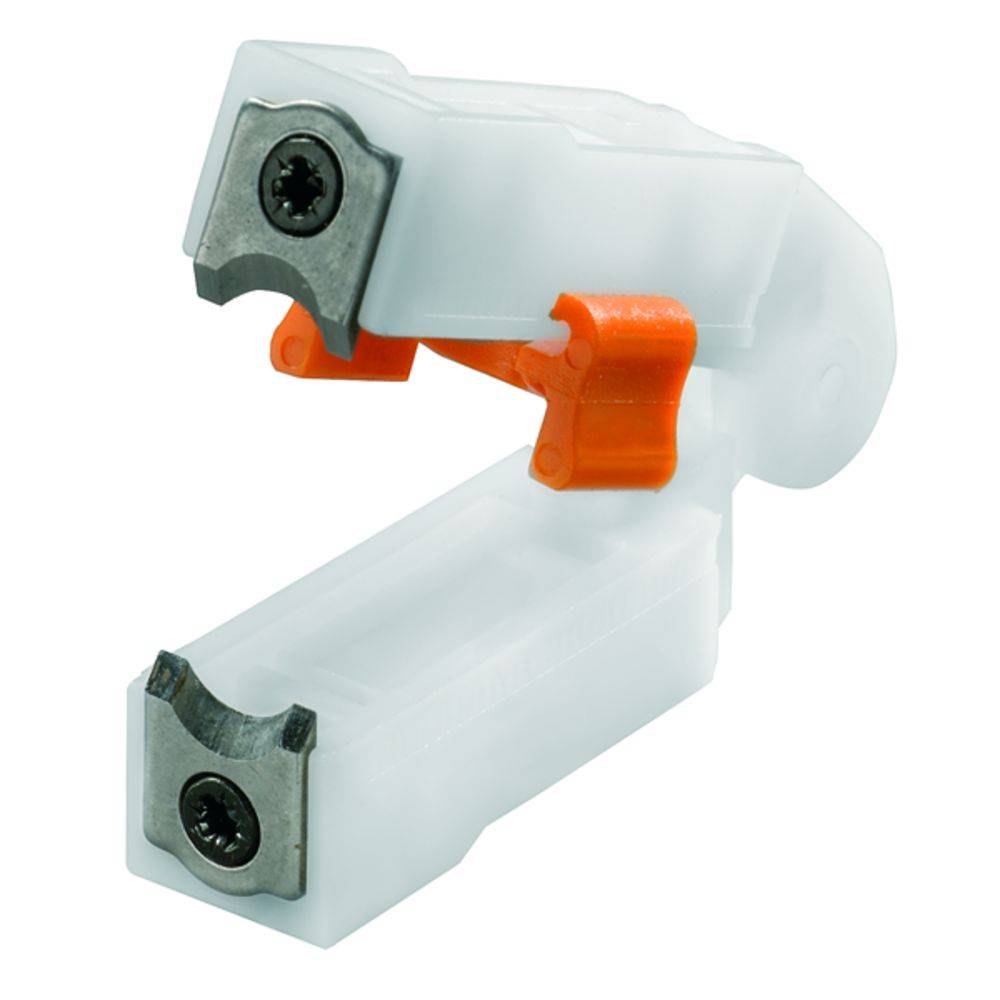

Weidmüller ERME 16² SPX 4 1119040000 Cablestripping blade mount 6 up to 16 mm² Suitable for brand (pliers) Weidmüller 90
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Blade holder
- ERME 16 ² SPX 4
Technical specifications
- Height 23 mm
- Color: Black
- Product type
Cablestripping blade mount
- Suitable for
PVC-coated cables
- Working area (cross section)
6 up to 16 mm²
- Working area cross section (min.)
6 mm²
- Operating range (cross section) (max.)
16 mm²
- Range of use
Electrician
- Length
11.2 mm
- Suitable for
Weidmüller
- Suited for model
9005610000
- Width
52 mm
- Weight
20 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 200628 Weidmüller ERME 16² SPX 4 1119040000 Cablestripping blade mount 6 up to 16 mm² Suitable for brand (pliers) Weidmüller 90
User & Safety Instructions
User & Safety Instructions 200628 Weidmüller ERME 16² SPX 4 1119040000 Cablestripping blade mount 6 up to 16 mm² Suitable for brand (pliers) Weidmüller 90
Description
Blade holder. For fine-stranded and solid conductors with PVC insulation. Stripping length with stop can be set. Automatic opening of the jaws after stripping. No Skewering of the single conductor. In various insulation thicknesses can be set. Double-insulated cable in two operations without any special setting. Cutting facility free of play and even after resetting. High durability: New ergonomic design
Hints
This text is machine translated.
What kind of Cable Strippers are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
€ 53.99*
