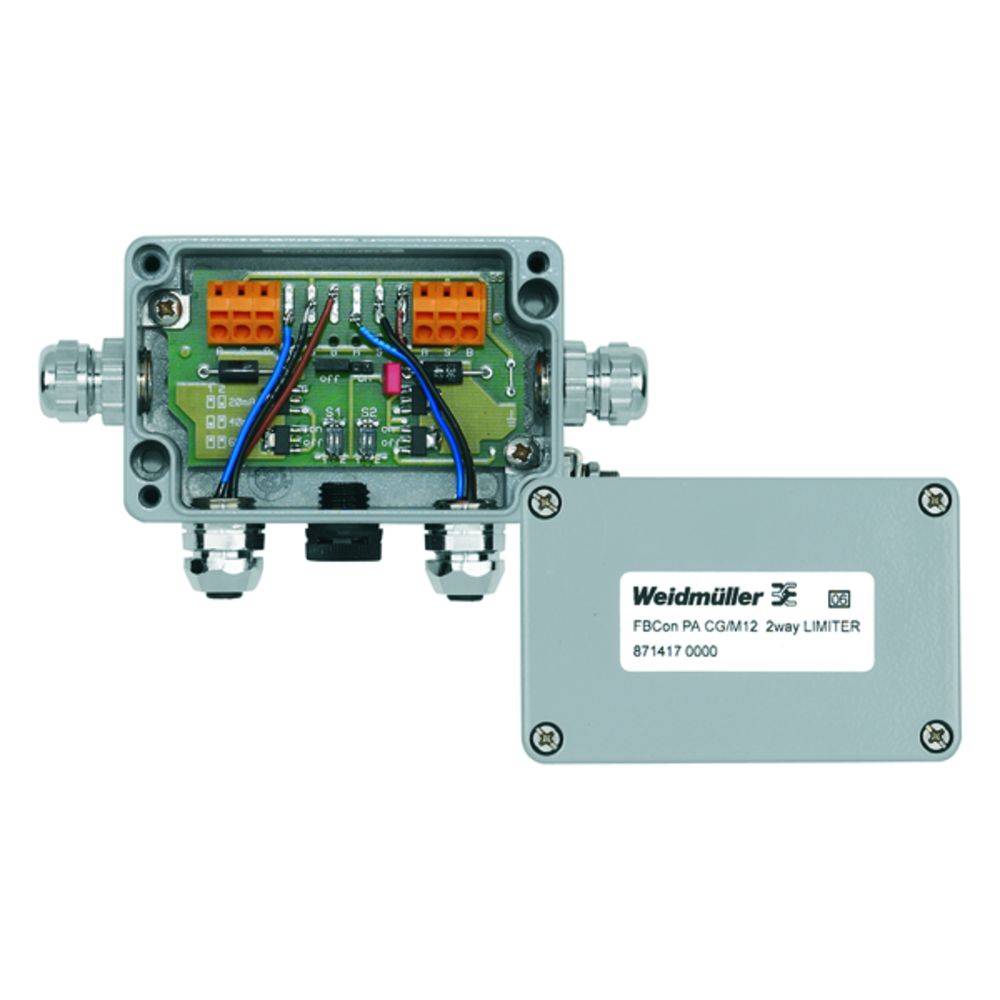

Weidmüller FBCON PA CG/M12 2WAY LIMITER 8714170000 Sensor & actuator box (passive) Profibus PA standard splitter with cu
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
No. of signal spaces
2
No. of splitters
2-way
Configuration
Single
Type
FBCON PA CG/M12 2WAY LIMITER
Datasheet (PDF)
Highlights & Details
Standard splitter with current limiter
- FBCon PA CG/M12 2way limiter
Technical specifications
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
2
- Configuration
Single
- Type
FBCON PA CG/M12 2WAY LIMITER
- Trunk line
No
- No. of splitters
2-way
- Status indicator
No LED
- Connection
Spring-loaded terminal
- Width
64 mm
- Length
98 mm
IP66
- Max. temperature
+55 °C
- Min. temperature
-40 °C
- Connector type (distribution boxes)
Spring-loaded terminal
- Weight
343 g
- Manufacturer part #
8714170000
- Factory colour
Grey
- Content
1 pc(s)
- Height
36 mm
- Features
Current limiter
Documents & Downloads
Datasheet
Datasheet 258255 Weidmüller FBCON PA CG/M12 2WAY LIMITER 8714170000 Sensor & actuator box (passive) Profibus PA standard splitter with cu
User & Safety Instructions
User & Safety Instructions 258255 Weidmüller FBCON PA CG/M12 2WAY LIMITER 8714170000 Sensor & actuator box (passive) Profibus PA standard splitter with cu
Description
Standard splitter with current limiter. 2-way distributor OVP/Fuse, IP66. The FBCon fieldbus distributor are in industry and in the EEx(ia) version available. They are used for the coupling of 1 - 8 field devices or sensors. The connection is made via spur lines. The connection of the stub line is optionally available as M12 plug connection or directly with EMC cable gland. The communication, and the device is powered via a common 2-wire line. The distributors offer depending on the version the following properties: Spring-cage connection. With surge protection for the main line. With current limiter (limiter) for each stub. Emc cable gland. M12 plug connector Outer an earth connection. Uninterrupted bus operation. Industrial design. Bus Termination integrated (non-Ex). EX-Version ATEX. Pressure compensation element, type of protection IP65, IP66, IP67. Stainless steel design, PROFIBUS-PA compatible.
