Image similar

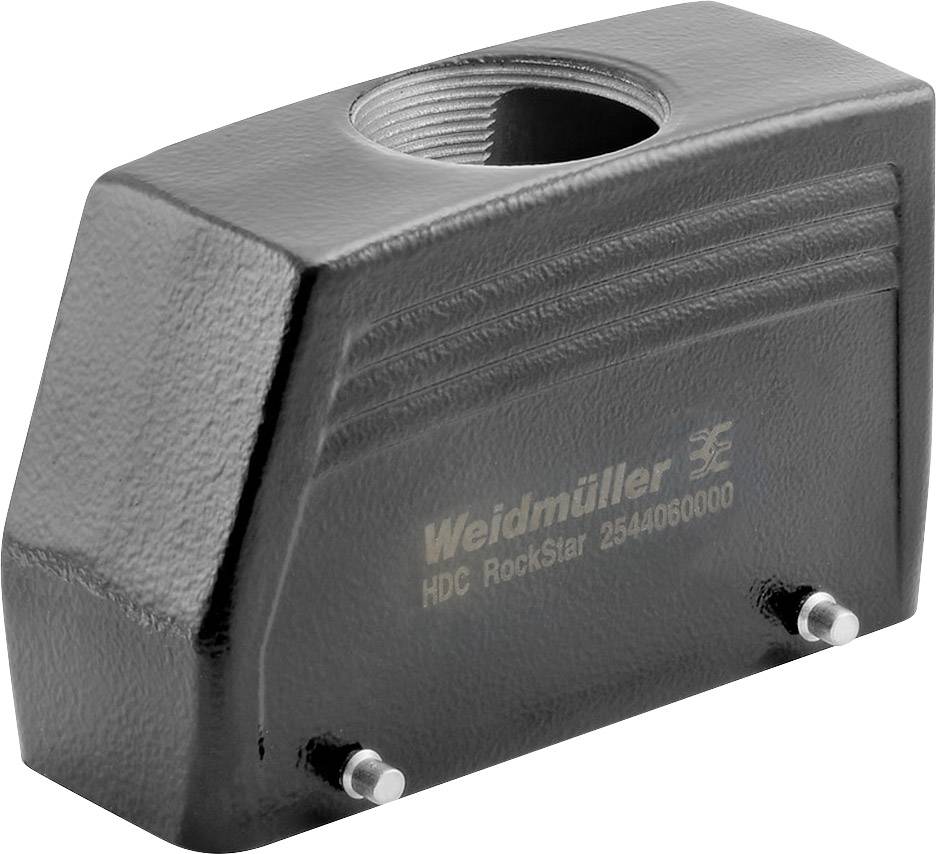

Weidmüller HDC 64D TOBU 1M40G EMC 2544060000 Plug enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug enclosure
Thread size
M40
Case material
Aluminium, die cast
Type
HDC 64D TOBU 1M40G EMC
Manufacturer part #
2544060000
Technical specifications
- Flammability class: V-0
- EMC Housing: Yes
- Number of cable input top: 1
- Number of cable input side: 0
- Size: 8
- Bracket design: Transverse bracket
- Seal: FPM
- suitable for ModulPlug®: Yes
- Top/Bottom section/Cover: Top section
- Type
HDC 64D TOBU 1M40G EMC
- Product type
Plug enclosure
- Manufacturer part #
2544060000
- Features
+ transverse brace on the bottom part
high type
+ thread
powder-painted
- Thread size
M40
- Type
Cable input top, connector housing
- Case material
Aluminium, die cast
- Factory colour
Black
- Weight
330 g
- Content
1 pc(s)
- Width
45.5 mm
- Height
76 mm
- Length
120 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2243970 Weidmüller HDC 64D TOBU 1M40G EMC 2544060000 Plug enclosure 1 pc(s)
