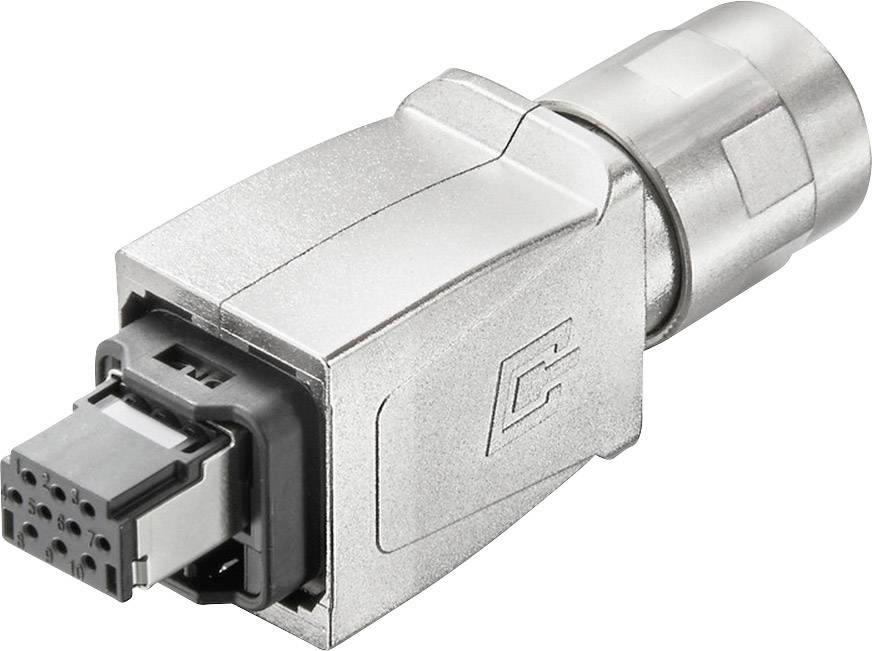

Name: Weidmüller IE-PS-V14M-HYB-10P Weidmüller IE-PS-V14M-HYB-10P N/A 1072910000 RJ45 plug enclosure No. of pins (RJ) 10 10 pc
Brand: Weidmüller
SKU: 2241881

Image similar

Packaging type

Piece

Product type

Connector

Connector type

RJ45 plug enclosure

No. of pins

Specification

CAT 5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Nominal current: 3 A per contact
Shielding: 360° all-round closed
Protection class: IP67
mating cycles: 500
contact surface: Gold over nickel
Connection 2: Hybrid (Q10)
sheath diameter: 5 mm - 10 mm
Forward resistance:< 10 mΩ
Insulation diameter: 0.85 mm - 1.05 mm

Packaging type: Piece

Type: IE-PS-V14M-HYB-10P

Product type: Connector

Connector type: RJ45 plug enclosure

No. of pins: 10

: CAT 5

Connector standard: RJ45

AWG max.: 20

AWG (min.): 27

Connection: Crimp

No. of rows: 1

Weight: 9 g

Content: 10 pc(s)

Contact material: Gold on nickel

Material: Zinc (die-cast)

Features: shielded housing

Max. temperature: +70 °C

Min. temperature: -40 °C

Cross section (flexible) (max.): 0.75 mm²

Cross section (inflexible) (max.): 0.75 mm²

Cross section (flexible) (min.): 0.08 mm²

Cross section (inflexible) (min.): 0.08 mm²

UKCA: not relevant
