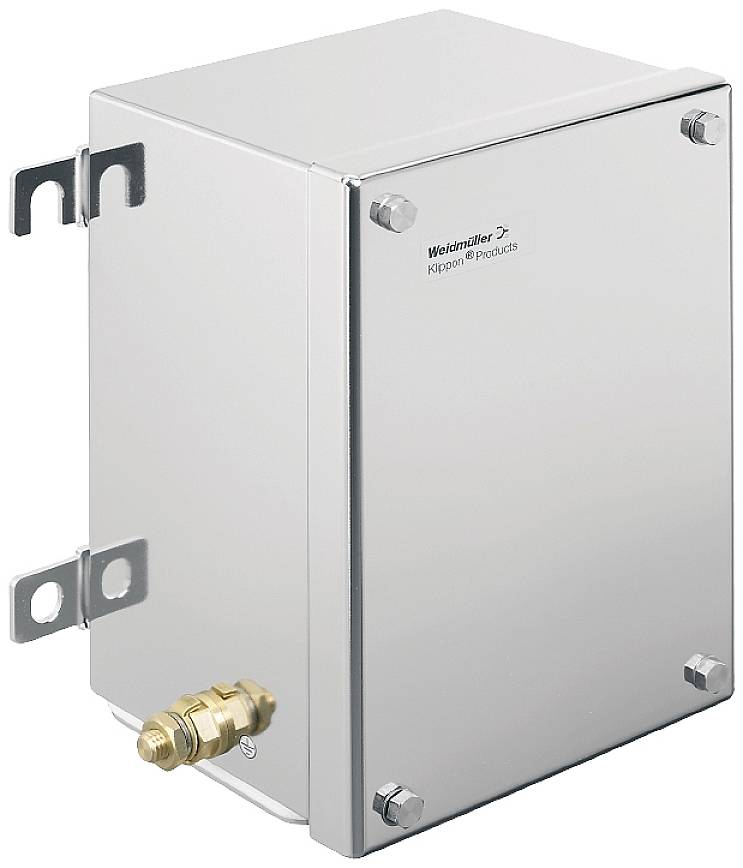

Weidmüller KTB FS 221513 S4E3 Casing 229 x 152 x 229 x 133 Stainless steel Silver 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Stainless steel
IP rating
IP66
IP67
Width
152 mm
Datasheet (PDF)
Highlights & Details
Housing
Our service for you
Technical specifications
- Mounting dimensions Width: 208 mm
- Mounting dimensions Height: 152 mm
- Operating temperature, max.: +135 °C
- Operating temperature, min.: -60 °C
- Lid mounting: M6 Hexagonal slotted screws SW10
- Sealing material: Silicone
- Torque Lid screws: 2.5 Nm
- Mounting mounting: 4.6 or 9 stud bolts M6 Internal thread
- Mounting instructions: Mounting rail / mounting plate
- Earthing housing internal: Welded M6 stainless steel earth stud in the lower part of the housing and cover, continuous M10 earthing bolt in the lower part of the housing
- Flange plates: Bottom, left, right
- Housing attachment: 4 welded mounting feet with 11 mm hole size (2 slot and 2 circular mounting feet)
- Material thickness: 1.5 mm
- Material cover: 1.5 mm
- Material thickness Flange: 3 mm
- Standards: DIN EN 62208 - Empty housing Standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
- Surface: Electropolished
- Wrench size 1: 10 mm
- Access opening Width: 122 mm
- Access opening Height: 199 mm
- Packaging type
Piece
- Product type
Casing
- Features
Explosion-proof
- Material
Stainless steel
IP66
IP67
- Factory colour
Silver
- Length
229 mm
- Width
152 mm
- Height
229 mm
- Dimensions
152 x 229 x 133 mm
- Weight
3.43 g
- Content
1 pc(s)
- Type
KTB FS 221513 S4E3
- Dim
(L x W x H) 229 x 152 x 229 mm
- RoHS-compliant
Yes
- Manufacturer part #
1195680000
- Depth
133 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1912000 Weidmüller KTB FS 221513 S4E3 Casing 229 x 152 x 229 x 133 Stainless steel Silver 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1912000 Weidmüller KTB FS 221513 S4E3 Casing 229 x 152 x 229 x 133 Stainless steel Silver 1 pc(s) Piece
Description
Ex-Metallgehause, 152 x 229 x 133 mm, electro-polished, flange plate: Yes, Down, Left, Right, M6 hex head screws SW 10
This text is machine translated.
This text is machine translated.
