Name: Weidmüller KTB FS 262615 S4E3 Casing 260 x 260 x 260 x 150 Stainless steel Silver 1 pc(s) Piece
Brand: Weidmüller
SKU: 1912003

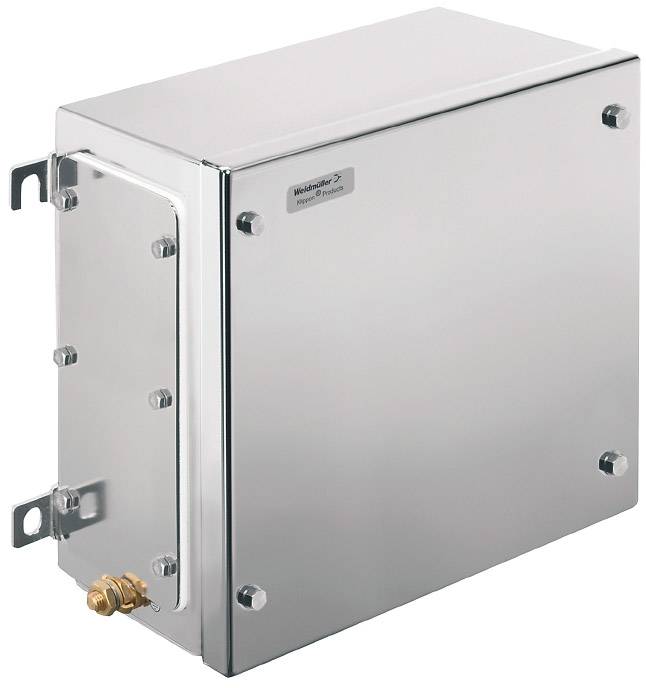

Metallic, rectangular electrical enclosure with a hinge on the left side, six visible mounting screws and a brass connection at the bottom.

Image similar

Packaging type

Piece

Product type

Casing

Material

Stainless steel

IP rating

IP66

IP67

Width

260 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Mounting dimensions Width: 316 mm
Mounting dimensions Height: 170 mm
Operating temperature, max.: +135 °C
Operating temperature, min.: -60 °C
Lid mounting: M6 Hexagonal slotted screws SW10
Sealing material: Silicone
Torque Lid screws: 2.5 Nm
Mounting mounting: 4.6 or 9 Stud bolts M6 Internal thread
Mounting note: Mounting rail / mounting plate
Earthing housing internal: Welded M6 stainless steel earth stud in the lower part of the housing and cover, continuous M10 earthing bolt in the lower part of the housing
Flange plates: Bottom, left, right
Housing attachment: 4 welded mounting feet with 11 mm hole size (2 slot and 2 circular mounting feet)
Material thickness: 1.5 mm
Material cover: 1.5 mm
Material thickness Flange: 3 mm
Standards: DIN EN 62208 - Empty housing Standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
Surface: Electropolished
Wrench size 1: 10 mm
Access opening Width: 230 mm
Access opening Height: 230 mm

Packaging type: Piece

Product type: Casing

Features: Explosion-proof

Material: Stainless steel

: IP66
IP67

Factory colour: Silver

Length: 260 mm

Width: 260 mm

Height (min.): 150 mm

Height: 260 mm

Weight: 6.83 g

Content: 1 pc(s)

Type: KTB FS 262615 S4E3

Dim: (L x W x H) 260 x 260 x 260 mm

RoHS-compliant: Yes

Manufacturer part #: 1195730000

Depth: 150 mm

UKCA: yes
