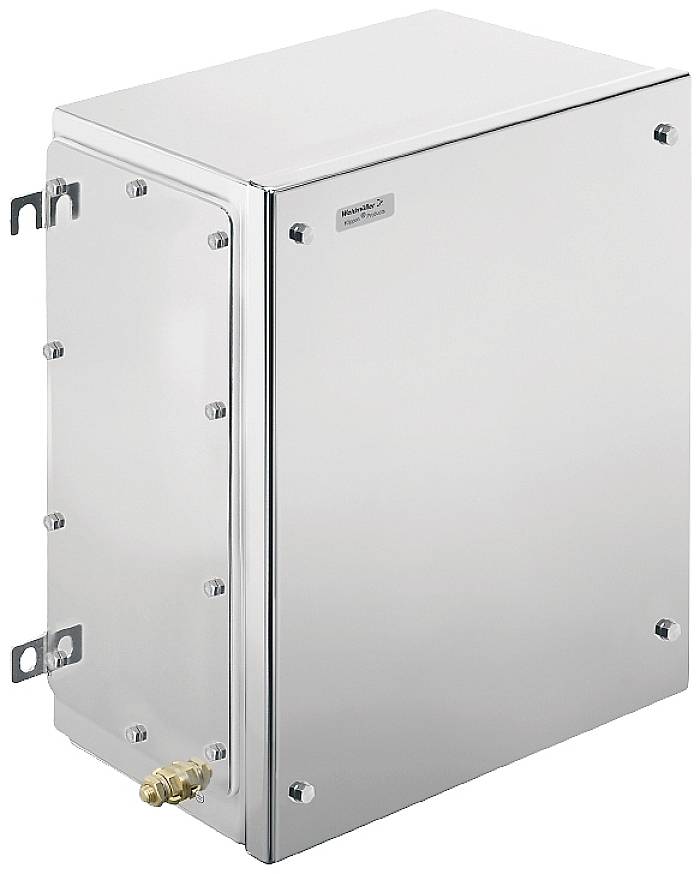

Weidmüller KTB FS 403020 S4E0 Wall-mount enclosure 300 x 400 x 200 Stainless steel Silver 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Wall-mount enclosure
Material
Stainless steel
IP rating
IP66
IP67
Width
300 mm
Datasheet (PDF)
Technical specifications
- Mounting dimensions Width: 326 mm
- Mounting dimensions Height: 247 mm
- Operating temperature, max.: +135 °C
- Operating temperature, min.: -60 °C
- Lid mounting: M6 Hexagonal slotted screws SW10
- Sealing material: Silicone
- Torque Lid screws: 2.5 Nm
- Mounting mounting: 4.6 or 9 Stud bolts M6 Internal thread
- Mounting note: Mounting rail / mounting plate
- Earthing housing internal: Welded M6 stainless steel earth stud in the lower part of the housing and cover, continuous M10 earthing bolt in the lower part of the housing
- Housing attachment: 4 welded mounting feet with 11 mm hole size (2 slot and 2 circular mounting feet)
- Material thickness: 1.5 mm
- Material thickness Cover: 1.5 mm
- Material thickness Flange: 3 mm
- Standards: DIN EN 62208 - Empty housing Standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
- Surface: Electropolished
- Wrench size 1: 10 mm
- Access opening Width: 270 mm
- Access opening Height: 370 mm
- Packaging type
Piece
- Product type
Wall-mount enclosure
- Features
Explosion-proof
- Material
Stainless steel
IP66
IP67
- Factory colour
Silver
- Width
300 mm
- Height
400 mm
- Dimensions
300 x 400 x 200 mm
- Weight
8.45 g
- Content
1 pc(s)
- Type
KTB FS 403020 S4E0
- Dim
(W x H x D) 300 x 400 x 200 mm
- RoHS-compliant
Yes
- Manufacturer part #
1196050000
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1912029 Weidmüller KTB FS 403020 S4E0 Wall-mount enclosure 300 x 400 x 200 Stainless steel Silver 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1912029 Weidmüller KTB FS 403020 S4E0 Wall-mount enclosure 300 x 400 x 200 Stainless steel Silver 1 pc(s) Piece
Description
The housing is suitable for use in industrial standard applications, in the transport sector and in hazardous areas, as it after the current ex-richtlinien is authorised. The mounting holes are located outside the sealing area. A direct wall mounting with mounting holes or by mounting base is possible.
This text is machine translated.
This text is machine translated.
