Name: Weidmüller KTB FS 453820 S4E3 Casing 382 x 458 x 200 Stainless steel Silver 1 pc(s) Piece
Brand: Weidmüller
SKU: 1912042

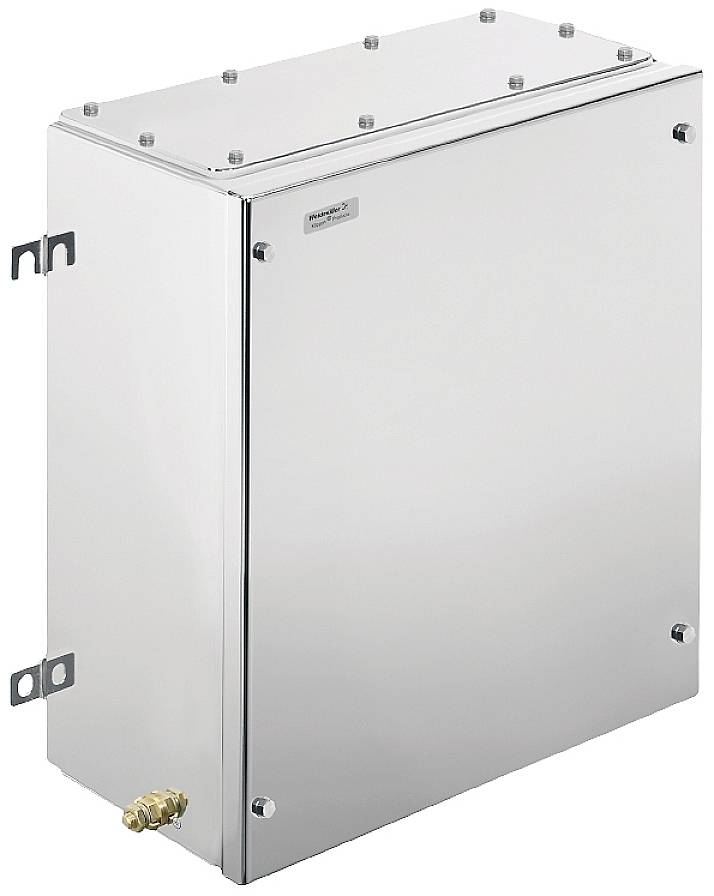

A rectangular, metallic enclosure cabinet with fittings and a connection on the underside, for secure storage of electronic equipment.

Packaging type

Piece

Product type

Casing

Material

Stainless steel

IP rating

IP66

IP67

Width

382 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Mounting dimensions Width: 438 mm
Mounting dimensions Height: 305 mm
Operating temperature, max.: +135 °C
Operating temperature, min.: -60 °C
Lid mounting: M6 Hexagonal slotted screws SW10
Sealing material: Silicone
Torque Lid screws: 2.5 Nm
Mounting mounting: 4.6 or 9 Stud bolts M6 Internal thread
Mounting note: Mounting rail / mounting plate
Earthing housing internal: Welded M6 stainless steel earth stud in the lower part of the housing and cover, continuous M10 earthing bolt in the lower part of the housing
Flange plates: Bottom, left, right
Housing attachment: 4 welded mounting feet with 11 mm hole size (2 slot and 2 circular mounting feet)
Material thickness: 1.5 mm
Material cover: 1.5 mm
Material thickness Flange: 3 mm
Standards: DIN EN 62208 - Empty housing Standard, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
Surface: Electropolished
Wrench size 1: 10 mm
Access opening Width: 352 mm
Access opening Height: 428 mm

Packaging type: Piece

Product type: Casing

Features: with flange

Material: Stainless steel

: IP66
IP67

Factory colour: Silver

Width: 382 mm

Height: 458 mm

Dimensions: 382 x 458 x 200 mm

Weight: 5.04 g

Content: 1 pc(s)

Type: KTB FS 453820 S4E3

Dim: (W x H x D) 382 x 458 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: 1196180000

Depth: 200 mm
