Weidmüller LED module WIL-EXXXX-RXPS-5700-X560-M8XX Aluminium 13.8 W 1639 lm 120 ° (L x W) 35 mm x 560 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

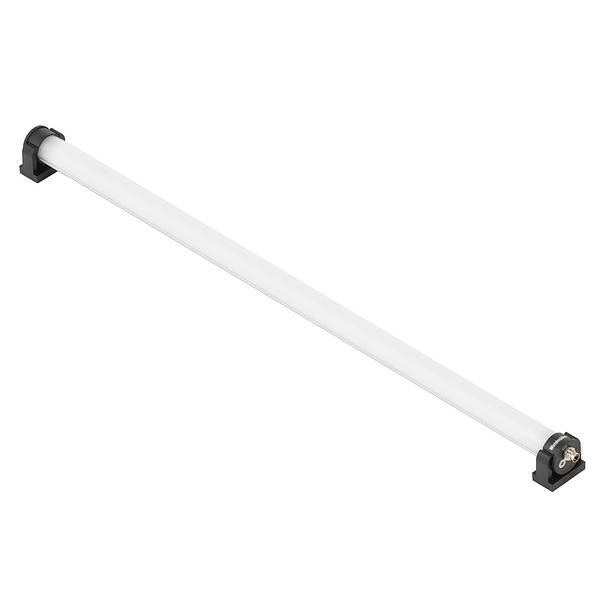

LED module, 5700K, white, 13.8 W, 1639 lm, IP54, plug, connection thread M8
- Power= 13.8 W
- Luminous flux (phi)= 1639 lm
- Colour temperature type= 5700 K
Technical specifications
- Product type
LED module
- Type
WIL-EXXXX-RXPS-5700-X560-M8XX
13.8 W
- Factory colour
Aluminium
- Colour temperature type
5700 K
- Luminous flux (Φ)
1639 lm
- Radiation angle
120°
- Connection
M8 plug
- Material
Aluminium
IP54
- Length
35 mm
- Width
560 mm
- Dim
(L x W) 35 mm x 560 mm
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3749242 Weidmüller LED module WIL-EXXXX-RXPS-5700-X560-M8XX Aluminium 13.8 W 1639 lm 120 ° (L x W) 35 mm x 560 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3749242 Weidmüller LED module WIL-EXXXX-RXPS-5700-X560-M8XX Aluminium 13.8 W 1639 lm 120 ° (L x W) 35 mm x 560 mm 1 pc(s)
Description
The LED module has a higher energy efficiency and durability than a fluorescent lamp and is suitable for tough ambient conditions (shock and vibration, wide temperature range).
