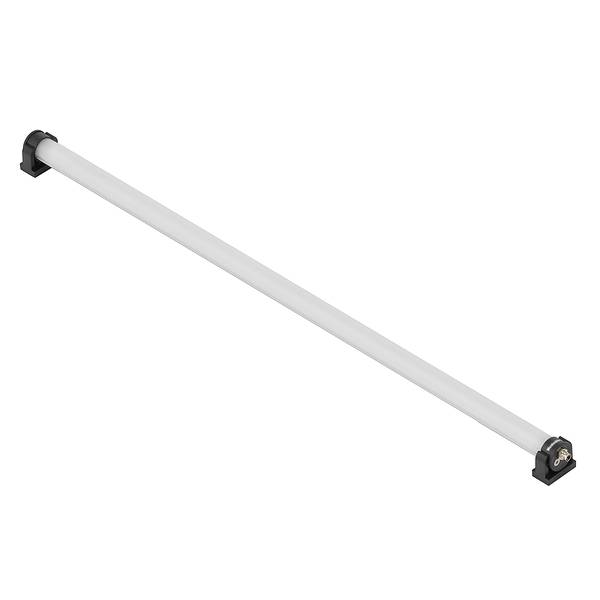

Weidmüller LED module WIL-EXXXX-RXPS-5700-X700-M8XX Aluminium 16.9 W 2048 lm 120 ° (L x W) 35 mm x 700 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED module, 5700K, white, 16.9 W, 2048 lm, IP54, plug, connection thread M8
- Power= 16.9 W
- Luminous flux (phi)= 2048 lm
- Colour temperature type= 5700 K
Technical specifications
- Product type
LED module
- Type
WIL-EXXXX-RXPS-5700-X700-M8XX
16.9 W
- Factory colour
Aluminium
- Colour temperature type
5700 K
- Luminous flux (Φ)
2048 lm
- Radiation angle
120°
- Connection
M8 plug
- Material
Aluminium
IP54
- Length
35 mm
- Width
700 mm
- Dim
(L x W) 35 mm x 700 mm
n.rel.
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3749244 Weidmüller LED module WIL-EXXXX-RXPS-5700-X700-M8XX Aluminium 16.9 W 2048 lm 120 ° (L x W) 35 mm x 700 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3749244 Weidmüller LED module WIL-EXXXX-RXPS-5700-X700-M8XX Aluminium 16.9 W 2048 lm 120 ° (L x W) 35 mm x 700 mm 1 pc(s)
Description
The LED module has a higher energy efficiency and durability than a fluorescent lamp and is suitable for tough ambient conditions (shock and vibration, wide temperature range).
