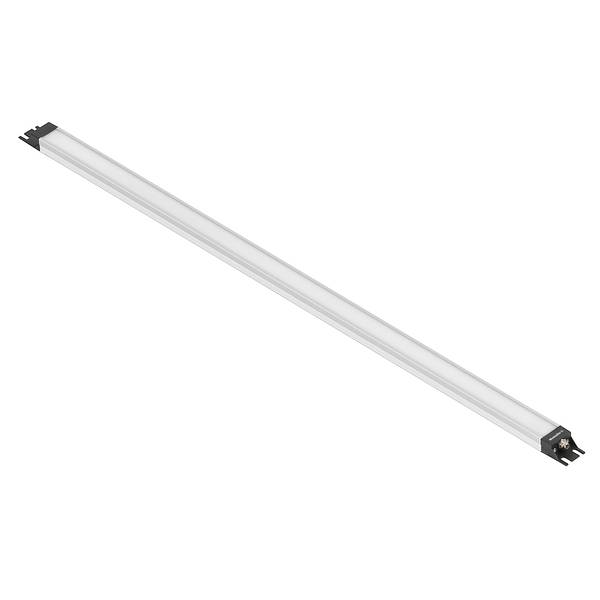

Weidmüller LED module WIL-SXXXX-FXPF-6500-X840-M8DX-S Aluminium 20.5 W 1713 lm 120 ° (L x W) 30 mm x 840 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED module, 6500K, cold white, 20.5 W, 1713 lm, IP69K, plug, socket, connection thread M8 / M8
- Power= 20.5 W
- Luminous flux (phi)= 1713 lm
- Colour temperature type= 6500 K
Technical specifications
- Product type
LED module
- Type
WIL-SXXXX-FXPF-6500-X840-M8DX-S
20.5 W
- Factory colour
Aluminium
- Colour temperature type
6500 K
- Luminous flux (Φ)
1713 lm
- Radiation angle
120°
- Connection
M8 plug
M8 socket
- Material
Aluminium
IP69K
- Length
30 mm
- Width
840 mm
- Dim
(L x W) 30 mm x 840 mm
n.rel.
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3749318 Weidmüller LED module WIL-SXXXX-FXPF-6500-X840-M8DX-S Aluminium 20.5 W 1713 lm 120 ° (L x W) 30 mm x 840 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3749318 Weidmüller LED module WIL-SXXXX-FXPF-6500-X840-M8DX-S Aluminium 20.5 W 1713 lm 120 ° (L x W) 30 mm x 840 mm 1 pc(s)
Description
The LED module has a higher energy efficiency and durability than a fluorescent lamp and is suitable for tough ambient conditions (shock and vibration, wide temperature range).
