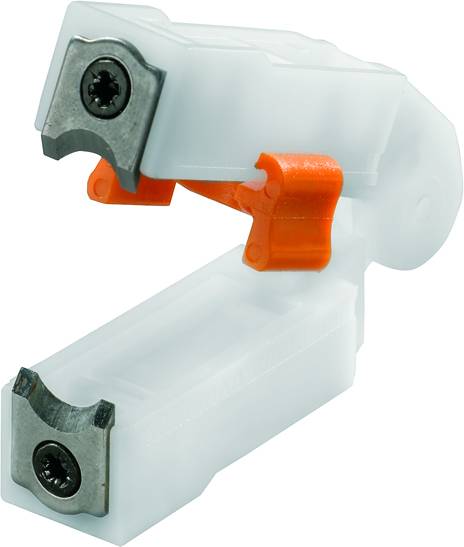

Weidmüller MEHA KP SW M-D-SPX 9003640000 Cable stripping blade incl. spare blades 1 up to 1.21 mm Suitable for brand (pl
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Blade set
- MEHA KP SW M-D-SPX
Technical specifications
- Height: 11.5 mm
- Color: Black
- Product type
Cable stripping blade
- Suitable for
Cables with non-standard coatings
- Operating range (diameter)
1 up to 1.21 mm
- Working area diameter (min.)
1 mm
- Operating range (diameter) (max.)
1.21 mm
- Length stop range
3 up to 7 mm
- Length stop (min.)
3 mm
- Length stop (max.)
7 mm
- Length
16 mm
- Suitable for
Weidmüller
- Suited for model
9001280000
- Width
26 mm
- Weight
3.68 g
- Features
incl. spare blades
Documents & Downloads
Datasheet
Datasheet 259011 Weidmüller MEHA KP SW M-D-SPX 9003640000 Cable stripping blade incl. spare blades 1 up to 1.21 mm Suitable for brand (pl
User & Safety Instructions
User & Safety Instructions 259011 Weidmüller MEHA KP SW M-D-SPX 9003640000 Cable stripping blade incl. spare blades 1 up to 1.21 mm Suitable for brand (pl
Description
Blade set Conductor with special insulation, 7 mm. Fine-stranded and solid conductors with PVC, Teflon (PTFE) and silicone insulation. No damage to the conductor through special shape knife. No Skewering of the single conductor. Fair inserts can be exchanged without much effort. All bits for a case.
Hints
This text is machine translated.
