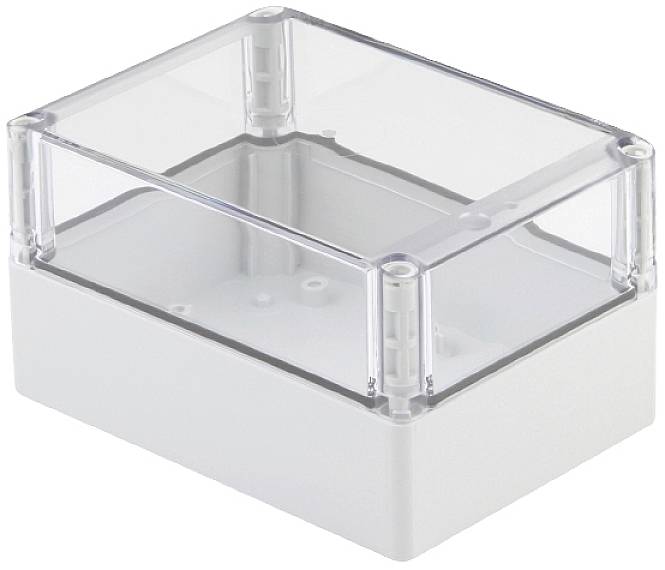

Weidmüller MPC 07/12/10 7035 Universal enclosure 125 x 75 x 100 Polycarbonate (PC) Light grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
Polycarbonate (PC)
IP rating
IP66
IP67
Width
125 mm
Height
75 mm
Datasheet (PDF)
Highlights & Details
Our service for you
Technical specifications
- Operating temperature, max.: +130 °C
- Operating temperature, min.: -50 °C
- Lid fixing: 4 Polyamide cross-head screws
- Sealing material: Polyurethane
- Torque Lid screws: 0.8 Nm
- Mounting mounting: By self-tapping screws
- Housing fixing: Holes 4.5 mm
- Product type
Universal enclosure
- Features
self-cutting
- Material
Polycarbonate (PC)
IP66
IP67
- Factory colour
Light grey
- Width
125 mm
- Height
75 mm
- Dimensions
125 x 75 x 100 mm
- Weight
14 g
- Content
20 pc(s)
- Type
MPC 07/12/10 7035
- Dim
(W x H x D) 125 x 75 x 100 mm
- RoHS-compliant
Yes
- Manufacturer part #
9535190000
- Depth
100 mm
Documents & Downloads
Datasheet
Datasheet 1917506 Weidmüller MPC 07/12/10 7035 Universal enclosure 125 x 75 x 100 Polycarbonate (PC) Light grey 20 pc(s)
User & Safety Instructions
User & Safety Instructions 1917506 Weidmüller MPC 07/12/10 7035 Universal enclosure 125 x 75 x 100 Polycarbonate (PC) Light grey 20 pc(s)
Description
Plastic housing for the installation of electrical, electro-mechanical and pneumatic devices, as well as printed circuit boards. The housing is used in mechanically and chemically demanding environments.
