Name: Weidmüller MULTI-STRIPAX 6-16 9202210000 Cable stripping pliers Fine adjustment 6 up to 16 mm² Suitable for brand (plier
Brand: Weidmüller
SKU: 259460

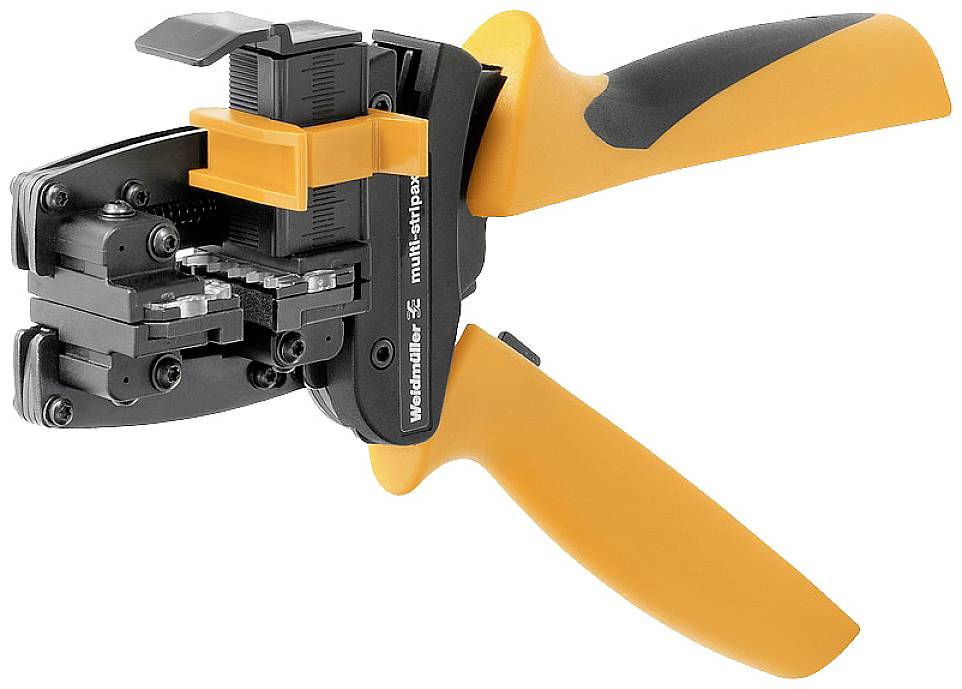

An orange multi-functional wire stripping pliers with black functional parts.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Stripping and cutting tool

Multi-stripax 6-16

Technical specifications

Height: 85 mm
conductor cross-section (cutting power): 6 mm²
max. cutting power flat conductor: 10.2 mm x 4 mm
max. cutting power single-core: 2.5 mm²
max. cutting power fine-wired: 6 mm²

Product type: Cable stripping pliers

Suitable for: PVC-coated cables

Working area (cross section): 6 up to 16 mm²

Working area cross section (min.): 6 mm²

Operating range (cross section) (max.): 16 mm²

Length stop range: 2 mm (min)

Length stop (min.): 2 mm

Length: 40 mm

Suitable for: Weidmüller

Suited for model: 9202210000

Width: 250 mm

Weight: 509.1 g

Features: Fine adjustment

: TRUE

: 509.1 kg/m

: 250 m

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 259460 Weidmüller MULTI-STRIPAX 6-16 9202210000 Cable stripping pliers Fine adjustment 6 up to 16 mm² Suitable for brand (plier

User & Safety Instructions

User & Safety Instructions 259460 Weidmüller MULTI-STRIPAX 6-16 9202210000 Cable stripping pliers Fine adjustment 6 up to 16 mm² Suitable for brand (plier

Description

Stripping and cutting tool. fine-stranded and solid conductors with PVC insulation, 16 mm². For fine-stranded and solid conductors with special insulation materials. High stripping quality for industrial application (according to request from the aviation). Conductor insulation stripping knife enable the special special form and the conductor structures. Stripping length with stop can be set. High flexibility by interchangeable stripping units. High repeatability of the stripping results. No damage to the conductor. High stability for long life and high reliability. Integrated cutting function.
