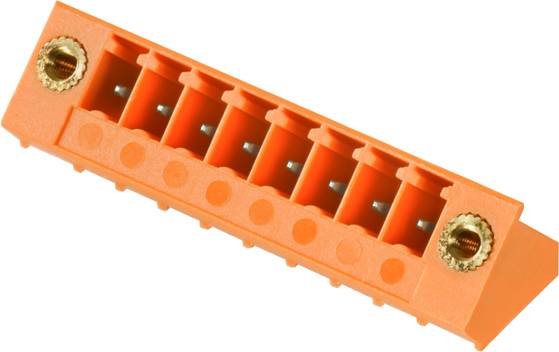

Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1976860000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, horizontal mount
No. of rows
1
Series
BC/SC
CS
3.81 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 14
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, horizontal mount
- No. of rows
1
- Connector system
wire-to-board
- Series
BC/SC
- Features
+ screw lock
- CS
3.81 mm
- Pins per row
14
- Total number of pins
14
- Width
63.73 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
50 pc(s)
- Dim
(L x W x H) 13.10 x 63.73 x 14.20 mm
- Connection
Print
- Case material
PA GF
- Manufacturer part #
1976860000
- Factory colour
Orange
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Nominal voltage
300 V
- Height
14.20 mm
- Length
13.10 mm
- RoHS-compliant
Yes
- Connector orientation
At an angle (to the PCB)
- Type
SC 3.81/14/135F 3.2SN OR BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 390294 Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1976860000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 390294 Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1976860000 50 pc(s)
Description
PCB connector. Multi-pin connector, Flange, solder, 3.81 mm, 14 Pins, 135°, solder pin length: 3.2 mm, tinned, orange, Box. The pin strip SC in 135°; - outlet direction - the angle of 135°; is defined between the plug-in direction and solder pin and identifies a slanted outlet direction with 45°; to the PCB. more freedom when assemblies and device design. simple access and high packing density, with parallel arrangement of several multi-pin connectors to a plug-in field. User-friendly housing design by an additional optional outlet direction as closed (G) variant and with screw flange (F) available. The Weidmüller connectors in the grid 3.81 mm (0.15 inch) are layout - compatible with common connectors and offer space for printing and coding. 320 V (IEC) / 300 V (UL), 17.5 A (IEC) / 10 A (UL).
This text is machine translated.
