Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1978200000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, vertical mount
No. of rows
1
Series
BC/SC
CS
3.81 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 14
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, vertical mount
- No. of rows
1
- Connector system
wire-to-board
- Series
BC/SC
- Features
+ screw lock
- CS
3.81 mm
- Pins per row
14
- Total number of pins
14
- Width
63.73 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
50 pc(s)
- Dim
(L x W x H) 13.10 x 63.73 x 14.20 mm
- Connection
Print
- Case material
LCP GF
- Manufacturer part #
1978200000
- Factory colour
Black
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Nominal voltage
300 V
- Height
14.20 mm
- Length
13.10 mm
- RoHS-compliant
Yes
- Connector orientation
At an angle (to the PCB)
- Type
SC-SMT 3.81/14/135LF 3.2 SN BK BX
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 390397 Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1978200000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 390397 Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1978200000 50 pc(s)
Description

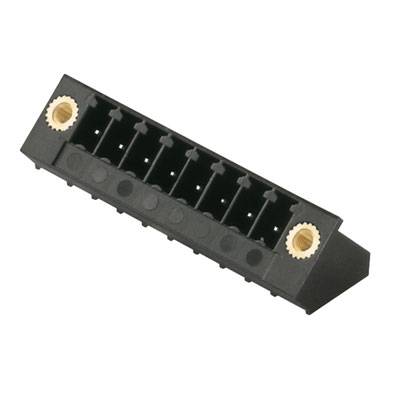

PCB connector. + solder sleeve, reflow solder connection, connector pin strip, 3.81 mm, 14 Pins, 135°, solder pin length: 3.2 mm, tinned, black, Box. The high-temperature resistant pin strip SC-SMT in 135°; - outlet direction - the angle of 135°; is defined between the plug-in direction and solder pin and identifies a slanted outlet direction with 45°; to the PCB. more freedom when assemblies and device design. simple access and high packing density, with parallel arrangement of several multi-pin connectors to a plug-in field. User-friendly housing design by an additional optional outlet direction. closed (G) and + solder sleeve (LF) available. Pin length either 1.5 mm or 3.2 mm. The Weidmüller connectors in the grid 3.81 mm (0.15 inch) are layout - compatible with common connectors and offer space for printing and coding. 320 V (IEC) / 300 V (UL), 17.5 A (IEC) / 10 A (UL).
This text is machine translated.
