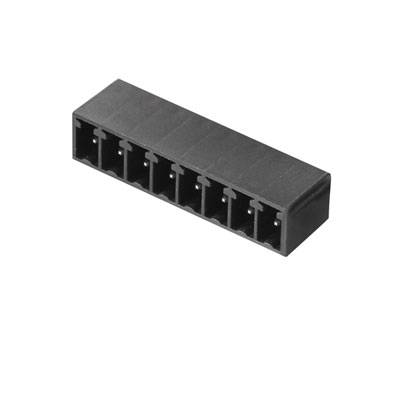

Weidmüller Pin housing PCB BC/SC Total number of pins 7 Contact spacing: 3.81 mm 1942350000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, horizontal mount
No. of rows
1
Series
BC/SC
CS
3.81 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 7
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, horizontal mount
- No. of rows
1
- Connector system
wire-to-board
- Series
BC/SC
- CS
3.81 mm
- Pins per row
7
- Total number of pins
7
- Width
28.07 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
50 pc(s)
- Dim
(L x W x H) 9.20 x 28.07 x 10.30 mm
- Connection
Print
- Case material
PA GF
- Manufacturer part #
1942350000
- Factory colour
Black
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Nominal voltage
300 V
- Height
10.30 mm
- Length
9.20 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
SC 3.81/07/90G 3.2SN BK BX
Documents & Downloads
Datasheet
Datasheet 376756 Weidmüller Pin housing PCB BC/SC Total number of pins 7 Contact spacing: 3.81 mm 1942350000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 376756 Weidmüller Pin housing PCB BC/SC Total number of pins 7 Contact spacing: 3.81 mm 1942350000 50 pc(s)
Description
PCB connector. Multi-pin connector on the side of closed, solder, 3.81 mm, number of poles: 7, 90°, solder pin length: 3.2 mm, tinned, black, Box. The pin strip SC offers a plug-in direction parallel to the printed circuit board (horizontal) and is in the closed (G) variant and with screw flange (F) available. The Weidmüller connectors in the grid 3.81 mm (0.15 inch) are layout - compatible with common connectors and offer space for printing and coding and a recording for flood light display. 320 V (IEC) / 300 V (UL), 17.5 A (IEC) / 10 A (UL).
