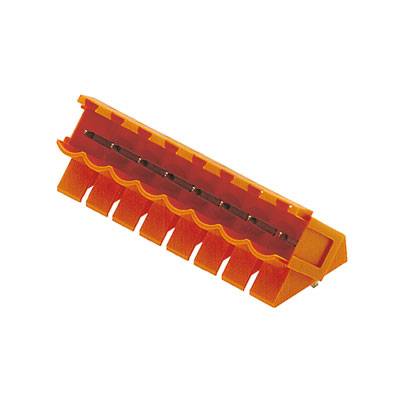

Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 12 Contact spacing: 5.08 mm 1605630000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, right angle
No. of rows
1
Series
BL/SL 5.08
CS
5.08 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 12
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, right angle
- No. of rows
1
- Connector system
wire-to-board
- Series
BL/SL 5.08
- CS
5.08 mm
- Pins per row
1
- Total number of pins
12
- Width
63.0 mm
- Pin shape
Rectangular
- Nominal current
17 A
- Nominal current - rounded value
17 A
- Content
50 pc(s)
- Dim
(L x W x H) 13.1 x 63.0 x 15.5 mm
- Connection
Print
- Case material
PBT
- Manufacturer part #
1605630000
- Factory colour
Orange
- Industrial packaging
Yes
- Insulation material
PBT
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
400 V
- Height
15.5 mm
- Length
13.1 mm
- RoHS-compliant
Yes
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL 5.08/12/135B 3.2SN OR BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 324500 Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 12 Contact spacing: 5.08 mm 1605630000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 324500 Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 12 Contact spacing: 5.08 mm 1605630000 50 pc(s)
Description
PCB connector. Multi-pin connector, swallow tails for attachment blocks, solder, 5.08 mm, 12 Pins, 135°, solder pin length: 3.2 mm, tinned, orange, Box. 400 V (IEC) / 300 V (UL), 17 A (IEC) / 15 A (UL).
