Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 16 Contact spacing: 5.08 mm 1599270000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, mount
No. of rows
1
Series
BL/SL 5.08
CS
5.08 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 16
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, mount
- No. of rows
1
- Connector system
wire-to-board
- Series
BL/SL 5.08
- CS
5.08 mm
- Pins per row
16
- Total number of pins
16
- Width
101 mm
- Nominal current
15 A
- Nominal current - rounded value
15 A
- Content
50 pc(s)
- Dim
(L x W x H) 17.5 x 101 x 28 mm
- Connection
Solder pins
- Case material
PBT
- Manufacturer part #
1599270000
- Factory colour
Orange
- Industrial packaging
Yes
- Insulation material
PBT
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
400 V
- Height
28 mm
- Length
17.5 mm
- RoHS-compliant
Yes
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SLDF 5.08 L/F 16 SN OR BX
Documents & Downloads
Datasheet
Datasheet 324286 Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 16 Contact spacing: 5.08 mm 1599270000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 324286 Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 16 Contact spacing: 5.08 mm 1599270000 50 pc(s)
Description

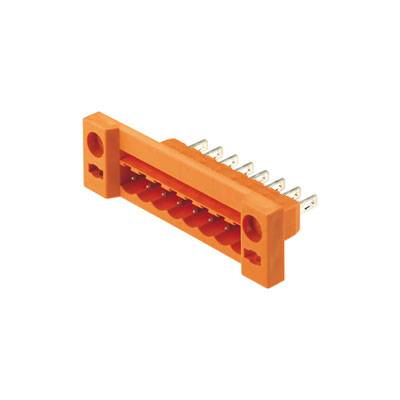

PCB connector. Multi-pin connector, 5.08 mm, 16 Pins, 180°, Box. Implementation of multi-pin connector for front panel mounting with an optional locking function. The internal connection is done as a spade connector or solder connection. The strips are labelled or barcode. 400 V (IEC) / 300 V (UL), 15 A (IEC) / 10 A (UL),.
