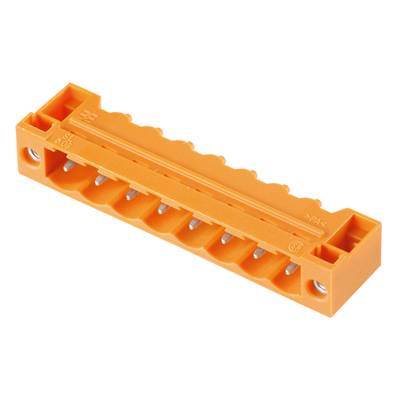

Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 18 Contact spacing: 5.08 mm 1150270000 20 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, right angle
No. of rows
1
Series
BL/SL 5.08
CS
5.08 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 20 pc(s)
- No. of rows: 1
- Total number of pins: 18
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, right angle
- No. of rows
1
- Connector system
wire-to-board
- Series
BL/SL 5.08
- CS
5.08 mm
- Pins per row
1
- Total number of pins
18
- Width
94.44 mm
- Pin shape
Rectangular
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
20 pc(s)
- Dim
(L x W x H) 11.7 x 94.44 x 12 mm
- Connection
Print
- Case material
Polyamide
- Manufacturer part #
1150270000
- Factory colour
Black
- Industrial packaging
Yes
- Insulation material
Polyamide
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
400 V
- Height
12 mm
- Length
11.7 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL 5.08HC/18/90F 3.2SN BK BX
Documents & Downloads
Datasheet
Datasheet 307680 Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 18 Contact spacing: 5.08 mm 1150270000 20 pc(s)
User & Safety Instructions
User & Safety Instructions 307680 Weidmüller Pin housing PCB BL/SL 5.08 Total number of pins 18 Contact spacing: 5.08 mm 1150270000 20 pc(s)
Description
PCB connector. Multi-pin connector, Flange, solder, 5.08 mm, number of poles: 18, 90°, solder pin length: 3.2 mm, tinned, black, Box. Pin strips made of glass-fiber reinforced plastic with 90° outlet direction optimized for wave soldering process. The variant with flange (F) can be used for screwing with the respective counterpart or the printed circuit board. The use of the Lotflansch-Variante (LF) there is no need an additional fitting with the PCB. At the same time, the joints before mechanical stress-proof. The strips can be manually coded or already vorkodiert ordered separately.
