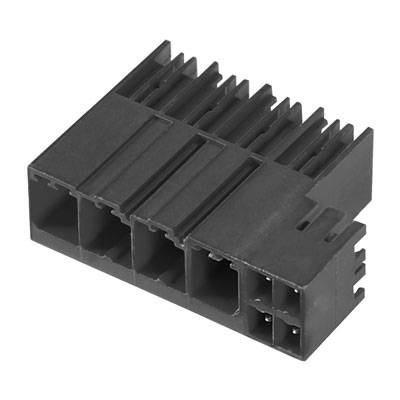

Weidmüller Pin housing PCB BU/SU Total number of pins 3 Contact spacing: 7.62 mm 1157050000 48 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, vertical mount
No. of rows
1
Series
BU/SU
CS
7.62 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 48 pc(s)
- No. of rows: 1
- Total number of pins: 3
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, vertical mount
- No. of rows
1
- Connector system
wire-to-board
- Series
BU/SU
- Features
+ latch
- CS
7.62 mm
- Pins per row
3
- Total number of pins
3
- Width
39.09 mm
- Nominal current
33 A
- Nominal current - rounded value
33 A
- Content
48 pc(s)
- Dim
(L x W x H) 14.90 x 39.09 x 28.30 mm
- Connection
Print
- Case material
PA GF
- Manufacturer part #
1157050000
- Factory colour
Black
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Nominal voltage
300 V
- Height
28.30 mm
- Length
14.90 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
SV 7.62HP/03/90G SC/08R SN BK BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 307924 Weidmüller Pin housing PCB BU/SU Total number of pins 3 Contact spacing: 7.62 mm 1157050000 48 pc(s)
User & Safety Instructions
User & Safety Instructions 307924 Weidmüller Pin housing PCB BU/SU Total number of pins 3 Contact spacing: 7.62 mm 1157050000 48 pc(s)
Description
PCB connector. Multi-pin connector on the side of closed, solder, 7.62 mm, number of poles: 3, 90°, solder pin length: 3.5 mm, tinned, black, Box. Combined 90°; pin strip with power and signal contacts in PUSH-IN connection technology including self verrastender center flange locking and (optionally) plug-in shield connection in grid 7.62. Allows the simultaneous insertion of energy, signals and (optional) EMC shield. Ideal for the connection of servo and asynchronous drives. Meets together with the socket strip BVF 7.62 HP/... BCF..R... the requirements of IEC 61800-5-1 and enables the UL-approval according to UL 840 600 V. The mating face is ensured without socket strip a minimum finger-safety for the energy contacts of> 3 mm with 20 N pressure on the test finger. The self-locking center flange reduces the space required compared to conventional solutions with a raster width. On request optional: without flange mounting, with additional screw mounting or with Lotflanschbefestigung. 1000 V (IEC) / 300 V (UL), 38 A (IEC) / 35 A (UL), 600 V via the Device Approval UL 840.
This text is machine translated.
This text is machine translated.
