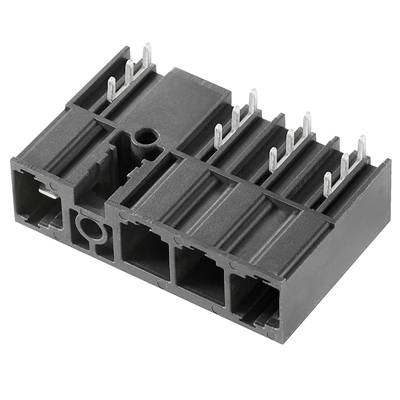

Weidmüller Pin housing PCB BU/SU Total number of pins 4 Contact spacing: 10.16 mm 1157340000 36 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, horizontal mount
No. of rows
1
Series
BU/SU
CS
10.16 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 36 pc(s)
- No. of rows: 1
- Total number of pins: 4
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, horizontal mount
- No. of rows
1
- Connector system
wire-to-board
- Series
BU/SU
- Features
+ latch
- CS
10.16 mm
- Pins per row
4
- Total number of pins
4
- Width
50.80 mm
- Nominal current
60 A
- Nominal current - rounded value
60 A
- Content
36 pc(s)
- Dim
(L x W x H) 17.10 x 50.80 x 32.00 mm
- Connection
Print
- Case material
PA GF
- Manufacturer part #
1157340000
- Factory colour
Black
- Industrial packaging
Yes
- Contact material
Cu-alloy, silver plated
- Nominal voltage
300 V
- Height
32.00 mm
- Length
17.10 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
SU 10.16IT/04/270MF2 3.5AG BK BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 307946 Weidmüller Pin housing PCB BU/SU Total number of pins 4 Contact spacing: 10.16 mm 1157340000 36 pc(s)
User & Safety Instructions
User & Safety Instructions 307946 Weidmüller Pin housing PCB BU/SU Total number of pins 4 Contact spacing: 10.16 mm 1157340000 36 pc(s)
Description
PCB connector. Multi-pin connector on the side of closed center flange, solder, 10.16 mm, number of poles: 4, 270°, solder pin length: 3.5 mm, silver-plated, black box. Multi-pin connectors with center flange mounting in grid 10.16 for IT networks 400 V according to IEC 61800-5-1. UL approval in accordance with UL 840 600 V with leading PE contact. Meets together with the socket strip BUZ 10.16 IT... the advanced challenges to 5.5 mm finger-safety for IT networks in accordance with IEC 61800-5-1 for 400 V against earth. The mating face is ensured by the isolated pen tips even without a minimum of 1 mm socket strip finger-safety with 20 N pressure on the test finger. The locking mechanism in the middle flange reduces the space required compared to conventional solutions with a raster width. On request with screw flange mounting or without flange available. 1000 V (IEC) / 300 V (UL), 76 A (IEC) / 54 A (UL), 600 V via the Device Approval UL 840.
This text is machine translated.
This text is machine translated.
