Weidmüller Powerstripper 9028480000 Electrician Automatic stripper 2.5 up to 16 mm² 6 up to 14 Suitable for brand (plier
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

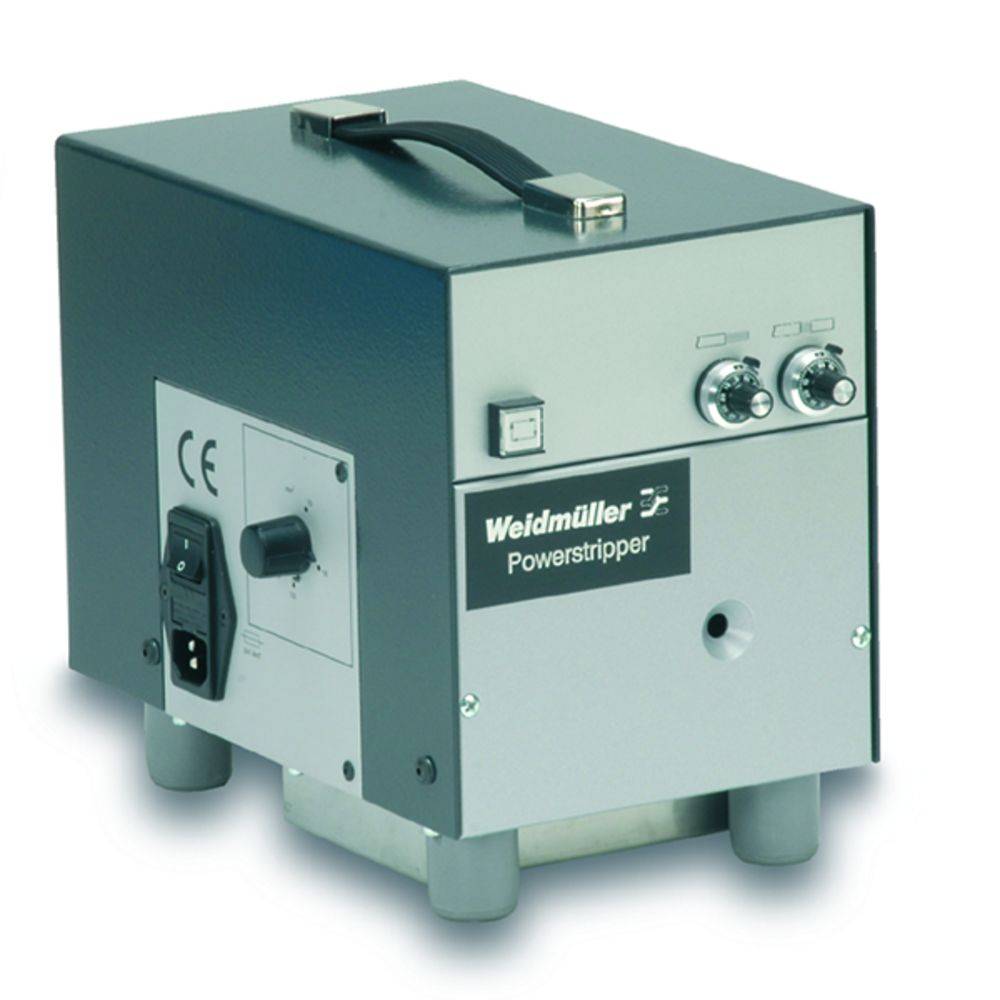

Stripping and cutting tool
- Power stripper 16.0
Technical specifications
- Height: 230 mm
- Electrical connection: 100-240 V / 50/65 Hz
- Cable length: 3-20 mm
- Drive: Electrical
- stripping range + crimping range: 2.5 - 16 mm² (~AWG 14-6)
- Connection values: 46 VA
- Product type
Automatic stripper
- Suitable for
DIN VDE 0295/5 cables
- Working area (cross section)
2.5 up to 16 mm²
- Working area cross section (min.)
2.5 mm²
- Operating range (cross section) (max.)
16 mm²
- Operating range (AWG diameter)
6 up to 14
- Range of use
Electrician
- Operating range (AWG cross section) (min.)
14
- Operating range (AWG cross section) (max.)
6 awg
- Length stop range
3 up to 20 mm
- Length stop (min.)
3 mm
- Length stop (max.)
20 mm
- Length
295 mm
- Suitable for
Weidmüller
- Width
190 mm
- Weight
8.8 kg
190
Skin
230 mm
295 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 259344 Weidmüller Powerstripper 9028480000 Electrician Automatic stripper 2.5 up to 16 mm² 6 up to 14 Suitable for brand (plier
User & Safety Instructions
User & Safety Instructions 259344 Weidmüller Powerstripper 9028480000 Electrician Automatic stripper 2.5 up to 16 mm² 6 up to 14 Suitable for brand (plier
Description
Stripping and cutting tool. 2.5 - 16 mm², (~AWG 14-6). For automatic stripping from single conductors. Stripping of flexible conductors according to DIN VDE 0295, KL: 5. Wire stripper, the isolation remains on the tail end of part. No tool change. Quick and easy setting option to the corresponding conductor cross-section. Stripping length of 3 to 20 mm. Min. Conductor length 22 mm plus stripping length. Electrical actuation
Hints
This text is machine translated.
