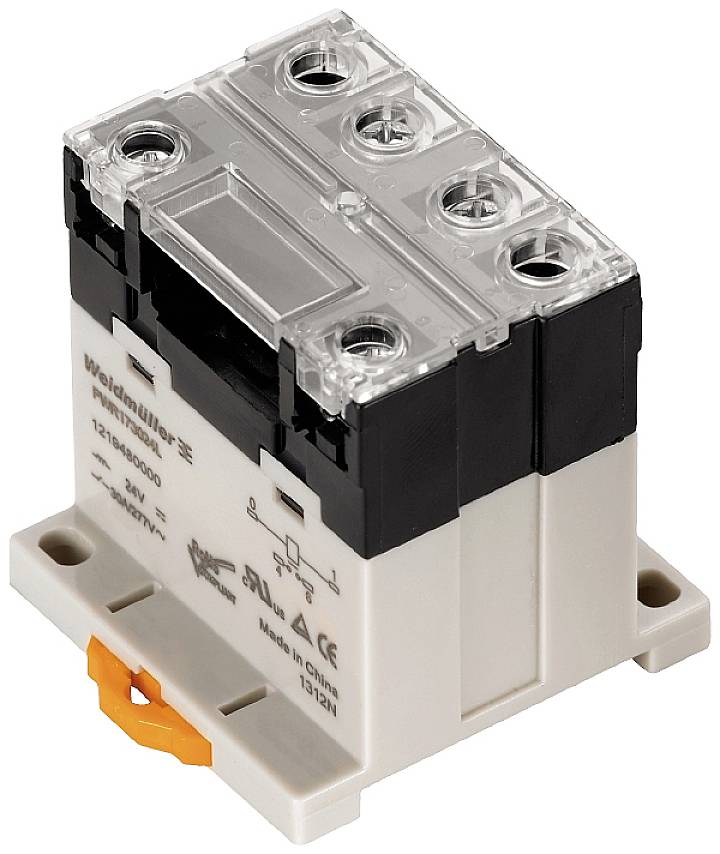

Weidmüller PWR173006L Crossbar switch 6 V AC 30 A 1 maker 10 pc(s)
Product type
Crossbar switch
Contact type
1 maker
Nominal voltage
6 V AC
Switching voltage (max.)
277 V AC
Switching current (max.)
30 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Humidity: 35...85 % rel. humidity, no condensation
- Storage temperature: -25 °C...55 °C.
- Rated output: 1.9 W
- Response/waste voltage type: 4.5 V / 0.9 V DC
- Status indicator: Green LED
- Nominal switching voltage 277 V AC
- Inrush current 150 A / 50 ms
- Switching power DC (ohmic), max. 720 W @ 24 V.
- min Switching power 100 mA @ 12 V
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Rated voltage: 250 V
- Over voltage category III
- Pollution level 3
- Insulation material class IIIa
- Electrical strength input - output: 4 kVeff / 1 min.
- Open contact withstand voltage 2 kVrms / 1 min.
- Surge voltage 6 kV (1.2/50 µs)
- Switch-off delay < : 10 ms
- Contact resistance ≤ 50 mΩ
- Terminal range, rated connection, min. (Tax side): 0.5 mm²
- Clamping range, rated connection, max. (control side): 2.5 mm²
- Tightening torque, min. (Control side): 0.5 Nm
- Tightening torque, max. (control side): 1.2 Nm
- Blade dimension (control side): GR. Ph2
- Terminal range, rated connection, min. (Load side): 0.5 mm²
- Clamping range, rated connection, max. (load side): 4 mm²
- Tightening torque, min. (Load side): 0.5 Nm
- Tightening torque, max. (load side): 1.2 Nm
- Blade dimension (load side): GR. Ph2
- Product type
Crossbar switch
- Type
PWR173006L
- Connection
Screws
- Factory colour
Beige
- Contact type
1 maker
- Contact material
AgSnO2
- Nominal voltage
6 V AC
- Switching voltage (max.)
277 V AC
- Switching current (max.)
30 A
- Max. switching capacity
8300 VA
- Creepage distance (coil/clips)
5.5 mm
- Resistance (coil)
18.9 Ω
IP10
- Max. temperature
+55 °C
- Min. temperature
-25 °C
- Depth
55 mm
- Width
50.5 mm
- Height
34 mm
- Dim
(W x H x D) 50.5 x 34 x 55 mm
- Content
10 pc(s)
- Weight
120 g
- RoHS-compliant
Yes
- Permanent current (max.)
30 A
- Operating voltage
6 V AC
- Switch-on current
150 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1912178 Weidmüller PWR173006L Crossbar switch 6 V AC 30 A 1 maker 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1912178 Weidmüller PWR173006L Crossbar switch 6 V AC 30 A 1 maker 10 pc(s)
Description
Relay coupler as mounted assembly consisting of plug-in relay and plug-in base. The control and load circuit are galvanically isolated.
