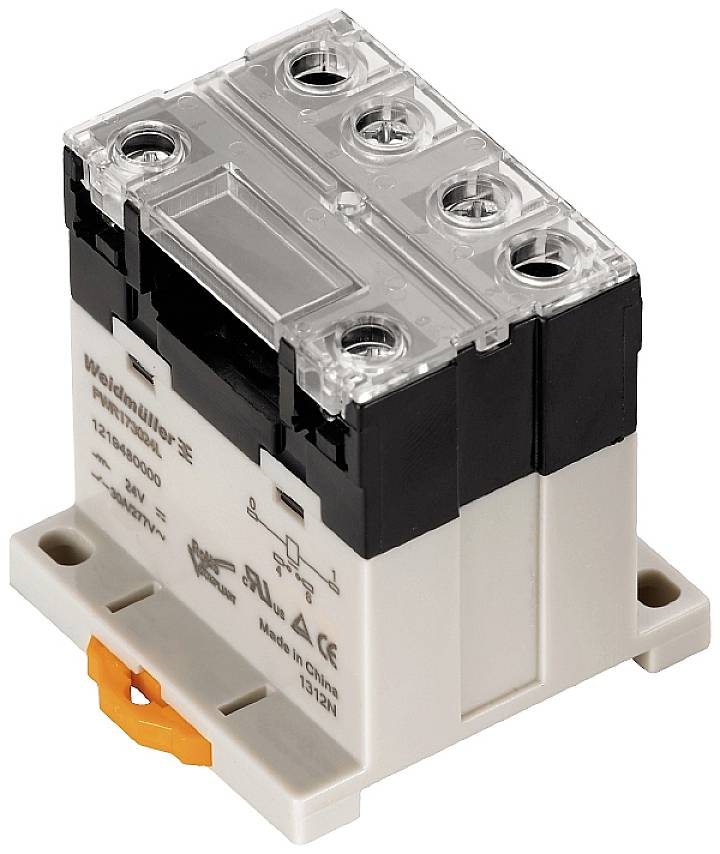

Weidmüller PWR173012L Plug-in relay 12 V DC 30 A 1 maker 10 pc(s)
Product type
Plug-in relay
Coil nominal voltage
12 V DC
Contact type
1 maker
Switching voltage (max.)
277 V AC
Switching current (max.)
30 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Plug-in relay
- Type
PWR173012L
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Max. pick-up voltage
13.2 V DC
- Resistance (coil)
75 Ω
- Contact type
1 maker
- Contact material
AgSnO2
- Switching voltage (max.)
277 V AC
- Switching current (max.)
30 A
- Max. switching capacity
8300 VA
720 W
- Creepage distance (coil/clips)
5.5 mm
- Fall time
10 ms
- Features
+ LED
IP10
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Weight
119.9 g
- Factory colour
Beige
- Width
50.5 mm
- Height
34 mm
- Depth
55 mm
- Dim
(W x H x D) 50.5 x 34 x 55 mm
- Industrial packaging
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
