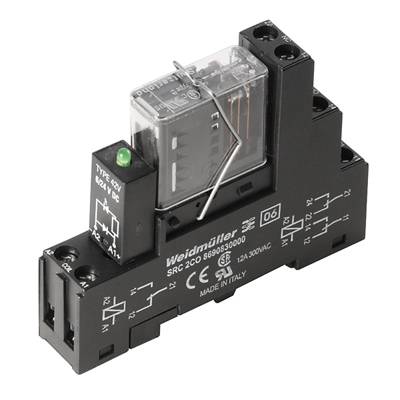

Weidmüller RCIKIT 24VDC 2CO LD/FG Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 2 change-overs
Packaging type
Package
Product type
Relay component
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
250 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Weidmüller RCIKIT 24VDC 2CO LD/FG Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 2 change-overs Package 10 pc(s)
- Industrial packaging, pack of 10
Technical specifications
- Status indicator: Green LED
- Switch-on delay: ≤ 12 ms
- Switch-off delay: ≤ 6 ms
- min Switching capacity: 1 mA at 24 V, 10 mA at 10 V, 100 mA at 5 V.
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: No.
- Mechanical switch position indicator: No.
- Over voltage category III
- Pollution level: 2
- Voltage strength input - output: 2.5 kVeff / 1 min.
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 2.5 mm²
- Clamping range, min. 0.5 mm²
- Clamping range, max. 2.5 mm²
- Blade dimension: GR. PH1
- Packaging type
Package
- Product type
Relay component
- Type
RCIKIT 24VDC 2CO LD/FG
- Connection
Screw terminal
- Factory colour
Black
- Max. pick-up voltage
18 V DC
- Response time
12 ms
- Fall time
6 ms
- Contact type
2 change-overs
- Contact material
AgCuNi
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
250 V DC
- Switching current (max.)
6 A
- Max. switching capacity
1500 VA
144 W
- Durability
50 x 10 6 circuits
- Creepage distance (coil/clips)
10 mm
- Resistance (coil)
720 Ω
- Features
+ LED
IP20
- Max. temperature
70 °C
- Min. temperature
-40 °C
- Length
61.6 mm
- Width
15.6 mm
- Height
77.6 mm
- Dim
(L x W x H) 61.6 x 15.6 x 77.6 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Weight
71.1 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 314748 Weidmüller RCIKIT 24VDC 2CO LD/FG Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 2 change-overs
User & Safety Instructions
User & Safety Instructions 314748 Weidmüller RCIKIT 24VDC 2CO LD/FG Relay component Nominal voltage: 24 V DC Switching current (max.): 6 A 2 change-overs
Description
Relay coupler. RIDERSERIES, number of contacts: 2, Co, AgCuNi, nominal control voltage: 24V DC, Continuous current: 6 A, screw connection. Coupling relays with positively driven contacts for monitoring signals in safety circuits. With a level of diagnostic coverage of 99 %, relays with positively driven contacts are one of many proven components in security technology. By locking the contacts, you can ensure synchronous switching states on both contacts. This ensures that in the event of an error (for example an overload when soldering the NO contact), the signalling contact retains the same switching state.
