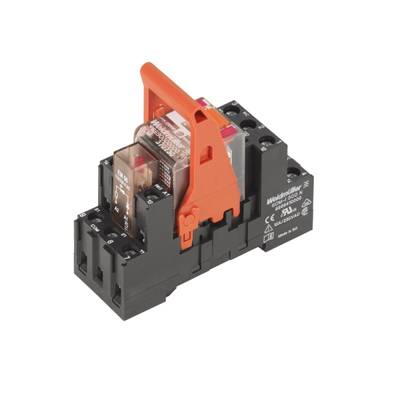

Weidmüller RCMKIT-I 24VAC 3CO LD Relay component Nominal voltage: 24 V AC Switching current (max.): 10 A 3 change-overs
Packaging type
Package
Product type
Relay component
Contact type
3 change-overs
Nominal voltage
24 V AC
Switching voltage (max.)
400 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Weidmüller RCMKIT-I 24VAC 3CO LD Relay component Nominal voltage: 24 V AC Switching current (max.): 10 A 3 change-overs Package 10 pc(s)
- Industrial packaging, pack of 10

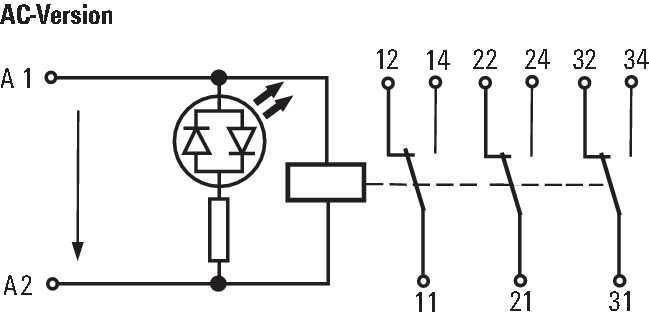

Technical specifications
- Status display: LED red
- Switch-on delay: ≤ 15 ms
- Switch-off delay: ≤ 10 ms
- min Switching capacity: 1 mA at 24 V, 10 mA at 12 V, 100 mA at 5 V.
- Max. Switching frequency at nominal load 0.1 Hz
- Mounting rail TS 35
- Test button: Yes (can be blocked)
- Mechanical switch position indicator: Yes
- Over voltage category III
- Pollution level: 2
- Insulation material class IIIa
- Voltage strength input - output: 2.5 kVeff / 1 min.
- Wire stripping length rated connection: 8 mm
- Clamping range, rated connection 2.5 mm²
- Clamping range, min. 1 mm²
- Clamping range, max. 2.5 mm²
- Conductor cross-section, single-wire, min.: 1 mm²
- Conductor cross-section, single-wire, max. 2.5 mm²
- Conductor cross-section, fine strand, min. 1 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, min.: 1 mm²
- Conductor cross-section, fine strand AEH with plastic collar DIN 46228/4, max. 2.5 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), min.: 1 mm²
- Conductor cross-section, fine strand, AEH (DIN 46228-1), max. 2.5 mm²
- Blade dimension: GR. PZ1
- Packaging type
Package
- Product type
Relay component
- Type
RCMKIT-I 24VAC 3CO LD
- Connection
Screw terminal
- Factory colour
Black
- Max. pick-up voltage
19.2 V AC
- Response time
15 ms
- Fall time
10 ms
- Contact type
3 change-overs
- Contact material
AgNi 90/10
- Nominal voltage
24 V AC
- Switching voltage (max.)
400 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2500 VA
240 W
- Durability
20 x 10 6 circuits
- Creepage distance (coil/clips)
4 mm
- Resistance (coil)
192 Ω
- Features
+ test button
IP20
- Max. temperature
70 °C
- Min. temperature
-40 °C
- Length
71.6 mm
- Width
27.2 mm
- Height
73.5 mm
- Dim
(L x W x H) 71.6 x 27.2 x 73.5 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Weight
100.2 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 391914 Weidmüller RCMKIT-I 24VAC 3CO LD Relay component Nominal voltage: 24 V AC Switching current (max.): 10 A 3 change-overs
User & Safety Instructions
User & Safety Instructions 391914 Weidmüller RCMKIT-I 24VAC 3CO LD Relay component Nominal voltage: 24 V AC Switching current (max.): 10 A 3 change-overs
Description
Relay coupler. RIDERSERIES, number of contacts: 3, changer with Prufftaste, AgNi 90/10, nominal control voltage: 24 V AC, continuous current 10 A, screw connection. Modular system consisting of: tragschienenmontierbarem relay socket, LED display unit, bracket, pluggable relay, markers.
