Name: Weidmüller RJ45C5 R12U 1.7N4G/Y RL Weidmüller RJ45C5 R12U 1.7N4G/Y RL N/A 2661430000 Socket No. of pins (RJ) 16 Black 24
Brand: Weidmüller
SKU: 2245620

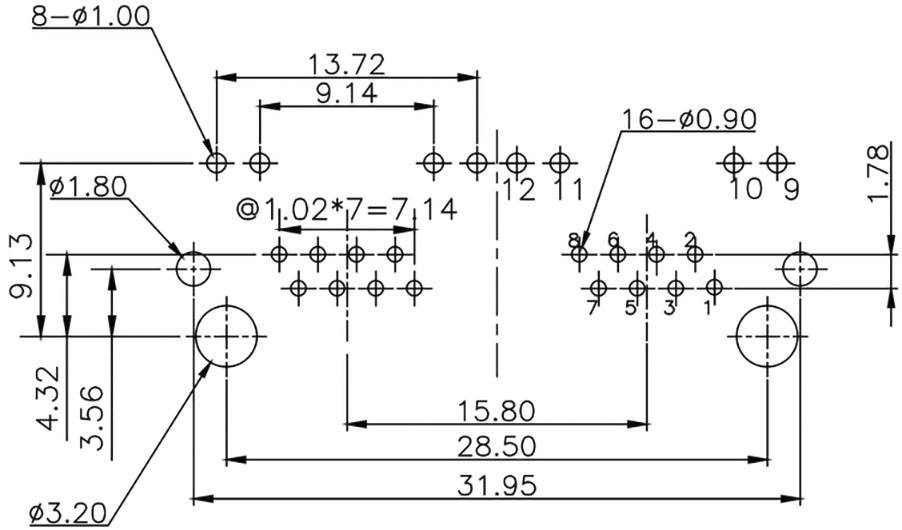

'Technical drawing of a mechanical component with precise dimensions, hole positions, and distances in millimetres.'

Technical drawing shows the dimensions and hole positions of a flange pattern with various diameters and distances in millimetres.

1/2

Stroke drawing/circuit diagram

Product type

RJ45 connector

Connector type

Socket

No. of pins

Specification

CAT 5

Connector standard

RJ45

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Height low-tensile: 13.1 mm
Bearing temperature: -40 °C - +85 °C
Insulation resistance: 1000 MΩ at 500 V/DC
Nominal voltage: 125 V
Nominal current: 1.5 A
Voltage strength Contact / Contact: 1000 V/DC, 1000 V/AC
Output angle: 90°
LED: Yes
Mounting on the PCB: THT/THR-solder connection
Pitch: 1.02 mm
Latch option: Top
Shield surface: Nickel-plated
shielding: Yes
Protection type: IP20
mating cycles: 750
insulating material: PA 9T
flammability class: V-0
soldering pin length: 1.7 mm
color LED left: Green
color LED right: Yellow

Type: RJ45C5 R12U 1.7N4G/Y RL

Product type: RJ45 connector

Connector type: Socket

No. of pins: 16

: CAT 5

Connector standard: RJ45

Connection: THT
THR
Soldering

Weight: 12.904 g

Factory colour: Black

Content: 240 pc(s)

Contact material: Phosphorus bronze gold plated

Moisture Sensitiviy Level (MSL): 1

Width: 32.2 mm

Height: 13.1 mm

Length: 15.7 mm

Max. temperature: +85 °C

Min. temperature: -40 °C

Variants(All information is without VAT, plus shipping costs)

Specification

No. of pins

Weidmüller RJ45C5 R12U 1.7N4G/Y RL Weidmüller RJ45C5 R12U 1.7N4G/Y RL N/A 2661430000 Socket No. of pins (RJ) 16 Black 240 pc(s) 2661430000 Socket No. of pins (RJ) 16 Black 240 pc(s)

Item no:2245620

Unavailable

Conrad Electronic

This article

CAT 5

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45C5E R1D 3.2N4G/Y TY Weidmüller RJ45C5E R1D 3.2N4G/Y TY N/A 2613200000 Socket No. of pins (RJ) 8 Black 120 pc(s) 2613200000 Socket No. of pins (RJ) 8 Black 120 pc(s)

Item no:2244195

Unavailable

Conrad Electronic

CAT 5e

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45C5E R1U 2.8N4N RL Weidmüller RJ45C5E R1U 2.8N4N RL N/A 2638490000 Socket No. of pins (RJ) 8 Black, Cyan 200 pc(s) 2638490000 Socket No. of pins (RJ) 8 Black, Cyan 200 pc(s)

Item no:2244389

Unavailable

Conrad Electronic

CAT 5e

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45C6 T1V 3.0N4N TY 2626050000 Socket No. of pins (RJ) 8 Black 160 pc(s)

Item no:2244303

Unavailable

2 Set(s)Conrad Electronic

CAT 6

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45G1 R1D 3.2E4N RL Weidmüller RJ45G1 R1D 3.2E4N RL N/A 2564440000 Socket No. of pins (RJ) 10 Black 200 pc(s) 2564440000 Socket No. of pins (RJ) 10 Black 200 pc(s)

Item no:2244103

Unavailable

Conrad Electronic

1 Gbps

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45G1 R1D 3.3E4GY/GY RL Weidmüller RJ45G1 R1D 3.3E4GY/GY RL N/A 2638860000 Socket No. of pins (RJ) 8 200 pc(s) 2638860000 Socket No. of pins (RJ) 8 200 pc(s)

Item no:2244390

Unavailable

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45G1 T1D 3.3E4N TY 2564420000 Socket No. of pins (RJ) 10 Black 120 pc(s)

Item no:2244101

Unavailable

Conrad Electronic

1 Gbps

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45M R1D 3.2E4N RL Weidmüller RJ45M R1D 3.2E4N RL N/A 2564430000 Socket No. of pins (RJ) 8 Black 200 pc(s) 2564430000 Socket No. of pins (RJ) 8 Black 200 pc(s)

Item no:2244102

Unavailable

Conrad Electronic

100 Mbps

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45M R1D 3.3E4G/Y RL 2564410000 Socket No. of pins (RJ) 8 Black 200 pc(s)

Item no:2244100

Unavailable

Conrad Electronic

100 Mbps

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45M R1V 3.3N4N TY Weidmüller RJ45M R1V 3.3N4N TY N/A 2636810000 Socket No. of pins (RJ) 8 Black 120 pc(s) 2636810000 Socket No. of pins (RJ) 8 Black 120 pc(s)

Item no:2244388

Unavailable

Conrad Electronic

100 Mbps

Piece(s)

Minimum order quantity: 1

Multiple: 1
