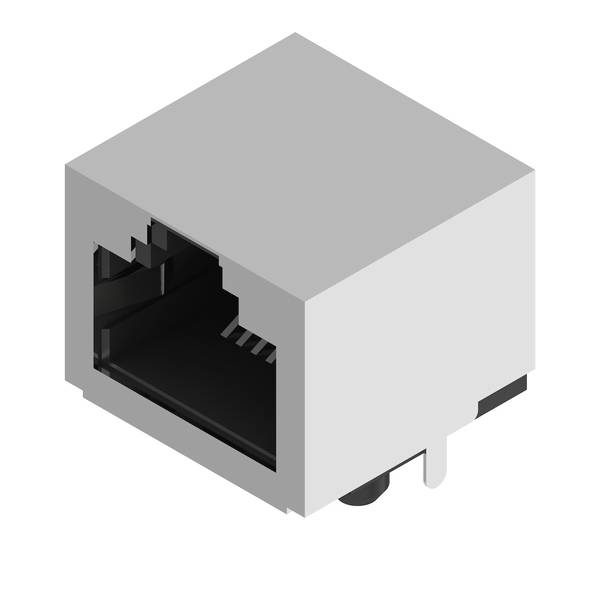

Name: Weidmüller RJ45C5 R1U 2.2N4N RL PCB connector modular RJ45 socket, CAT. 5 , THT/THR solder connection, shielding: Yes, L
Brand: Weidmüller
SKU: 3751148

Weidmüller RJ45C5 R1U 2.2N4N RL PCB connector modular RJ45 socket, CAT. 5 , THT/THR solder connection, shielding: Yes, L-0

Packaging type

Tape

Product type

PCB connector

Connector type

Socket

No. of pins

Specification

CAT 5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Tape

Type: RJ45C5 R1U 2.2N4N RL

Product type: PCB connector

Connector type: Socket

No. of pins: 8

: CAT 5

Connector standard: RJ45

Connection: THR

No. of rows: 1

Factory colour: Black

Content: 240 pc(s)

Contact material: Gold on nickel

Material: Polyamide

Features: + shielding
no LED display

Max. temperature: 85 °C

Min. temperature: -40 °C

: Flexible PCB-connector

: Black

: 125 V

: 8

: Bus

: -40-85 °C

: Solder

: 9011

: THR connection

: Nickel/gold

: 2.2 mm

: 1.02 mm

: 1

: Other

: 1.02 mm

: Fixed connector

: Polyamide (PA)

: 0°/180° (horizontal)

: Flange

: 1.5 A

: V0
