Name: Weidmüller RJ45C6 T1V 3.0N4N TY 2626050000 Socket No. of pins (RJ) 8 Black 160 pc(s)
Brand: Weidmüller
SKU: 2244303

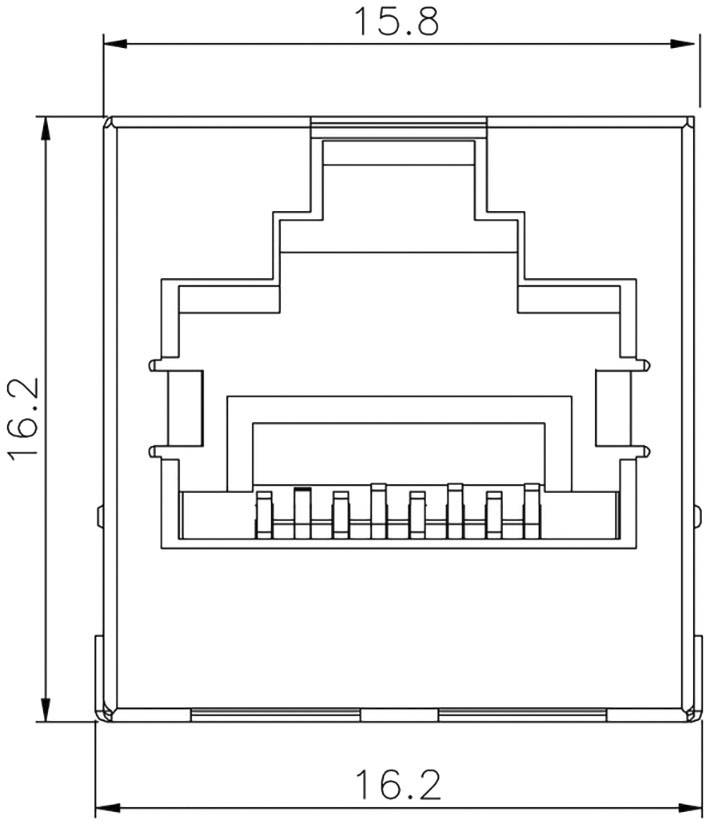

Technical drawing of an RJ45 socket, with dimensions: width 15.8 mm, height 16.2 mm. Shows front view with contours and pins.

Technical drawing of an RJ45 socket module with dimensions: width 16.2 mm, height 16.2 mm, depth 15.8 mm.

1/2

Stroke drawing/circuit diagram

Product type

RJ45 connector

Connector type

Socket

No. of pins

Specification

CAT 6

Connector standard

RJ45

Unavailable

2 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Height low-building: 16.5 mm
Nominal voltage: 125 V
Output angle: 180°
Number of solder pins per pole: 1
LED: No
Mounting on the PCB: THT-solder connection
Grid: 1.27 mm
Screen material: Brass, nickel-plated
Screen surface: Nickel-plated
Shielding: Yes
Protection class: IP20
Plug cycles: 750
Insulation material: PA 66
Flammability class: V-0
Contact surface: Gold over
soldering pin length: 3 mm

Type: RJ45C6 T1V 3.0N4N TY

Product type: RJ45 connector

Connector type: Socket

No. of pins: 8

: CAT 6

Connector standard: RJ45

Connection: THT
Soldering

Weight: 6.719 g

Factory colour: Black

Content: 160 pc(s)

Width: 15.8 mm

Height: 16.5 mm

Length: 16.2 mm

Max. temperature: +85 °C

Min. temperature: -40 °C
