Name: Weidmüller RJ45M R1V 3.3N4N TY Weidmüller RJ45M R1V 3.3N4N TY N/A 2636810000 Socket No. of pins (RJ) 8 Black 120 pc(s) 2
Brand: Weidmüller
SKU: 2244388

'Circuit diagram of an Ethernet transceiver with PC circuit board on the left, RJ45 connector on the right. Shows signal transmissions and resistances.'

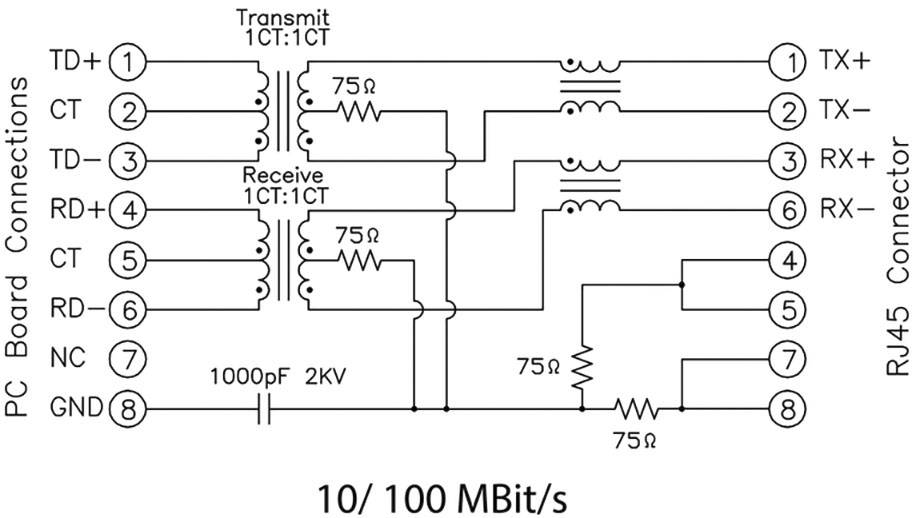

'10/100 MBit/s' wiring diagram for printed circuit board to RJ45 socket, showing transmission and reception connections with resistance values.

1/2

Stroke drawing/circuit diagram

Packaging type

Piece

Product type

RJ45 connector

Connector type

Socket

No. of pins

Specification

100 Mbps

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Insulation resistance>: 500 MΩ
Nominal voltage: 125 V
Nominal current: 1.5 A
Voltage strength contact / contact: 1000 V/DC
Voltage strength contact / shield: 1500 V/DC
Output angle: 180°
LED: No
Mounting on the circuit board: THT/THR soldering connection
Pitch: 1.27 mm Shielding: Yes Protection class: IP20 Plug cycles: 750 Transmission rate: 100 MBit/s Insulation material: PA 9T Flammability class:
V-0
contact surface: Gold over nickel
solder pin length 3.3 mm

Packaging type: Piece

Type: RJ45M R1V 3.3N4N TY

Product type: RJ45 connector

Connector type: Socket

No. of pins: 8

: 100 Mbps

Connector standard: RJ45

Connection: THT
THR
Soldering

Type A: RJ45 socket

No. of ports: 8 x

Weight: 999 g

Factory colour: Black

Content: 120 pc(s)

Contact material: Gold on nickel

Moisture Sensitiviy Level (MSL): 1

Width: 16 mm

Height: 17 mm

Length: 16.8 mm

Max. temperature: +85 °C

Min. temperature: -40 °C

Variants(All information is without VAT, plus shipping costs)

Specification

No. of pins

Packaging type

Weidmüller RJ45M R1V 3.3N4N TY Weidmüller RJ45M R1V 3.3N4N TY N/A 2636810000 Socket No. of pins (RJ) 8 Black 120 pc(s) 2636810000 Socket No. of pins (RJ) 8 Black 120 pc(s)

Item no:2244388

Unavailable

Conrad Electronic

This article

100 Mbps

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45C5 R12U 1.7N4G/Y RL Weidmüller RJ45C5 R12U 1.7N4G/Y RL N/A 2661430000 Socket No. of pins (RJ) 16 Black 240 pc(s) 2661430000 Socket No. of pins (RJ) 16 Black 240 pc(s)

Item no:2245620

Unavailable

Conrad Electronic

CAT 5

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45C5E R1D 3.2N4G/Y TY Weidmüller RJ45C5E R1D 3.2N4G/Y TY N/A 2613200000 Socket No. of pins (RJ) 8 Black 120 pc(s) 2613200000 Socket No. of pins (RJ) 8 Black 120 pc(s)

Item no:2244195

Unavailable

Conrad Electronic

CAT 5e

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45C5E R1U 2.8N4N RL Weidmüller RJ45C5E R1U 2.8N4N RL N/A 2638490000 Socket No. of pins (RJ) 8 Black, Cyan 200 pc(s) 2638490000 Socket No. of pins (RJ) 8 Black, Cyan 200 pc(s)

Item no:2244389

Unavailable

Conrad Electronic

CAT 5e

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45C6 T1V 3.0N4N TY 2626050000 Socket No. of pins (RJ) 8 Black 160 pc(s)

Item no:2244303

Unavailable

2 Set(s)Conrad Electronic

CAT 6

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45G1 R1D 3.2E4N RL Weidmüller RJ45G1 R1D 3.2E4N RL N/A 2564440000 Socket No. of pins (RJ) 10 Black 200 pc(s) 2564440000 Socket No. of pins (RJ) 10 Black 200 pc(s)

Item no:2244103

Unavailable

Conrad Electronic

1 Gbps

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45G1 R1D 3.3E4GY/GY RL Weidmüller RJ45G1 R1D 3.3E4GY/GY RL N/A 2638860000 Socket No. of pins (RJ) 8 200 pc(s) 2638860000 Socket No. of pins (RJ) 8 200 pc(s)

Item no:2244390

Unavailable

Conrad Electronic

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45G1 T1D 3.3E4N TY 2564420000 Socket No. of pins (RJ) 10 Black 120 pc(s)

Item no:2244101

Unavailable

Conrad Electronic

1 Gbps

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45M R1D 3.2E4N RL Weidmüller RJ45M R1D 3.2E4N RL N/A 2564430000 Socket No. of pins (RJ) 8 Black 200 pc(s) 2564430000 Socket No. of pins (RJ) 8 Black 200 pc(s)

Item no:2244102

Unavailable

Conrad Electronic

100 Mbps

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller RJ45M R1D 3.3E4G/Y RL 2564410000 Socket No. of pins (RJ) 8 Black 200 pc(s)

Item no:2244100

Unavailable

Conrad Electronic

100 Mbps

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2244388 Weidmüller RJ45M R1V 3.3N4N TY Weidmüller RJ45M R1V 3.3N4N TY N/A 2636810000 Socket No. of pins (RJ) 8 Black 120 pc(s) 2
