Name: Weidmüller RJ45M S1D DE4N RL Weidmüller RJ45M S1D DE4N RL N/A 2564450000 Socket No. of pins (RJ) 8 Black 220 pc(s) 25644
Brand: Weidmüller
SKU: 2244104

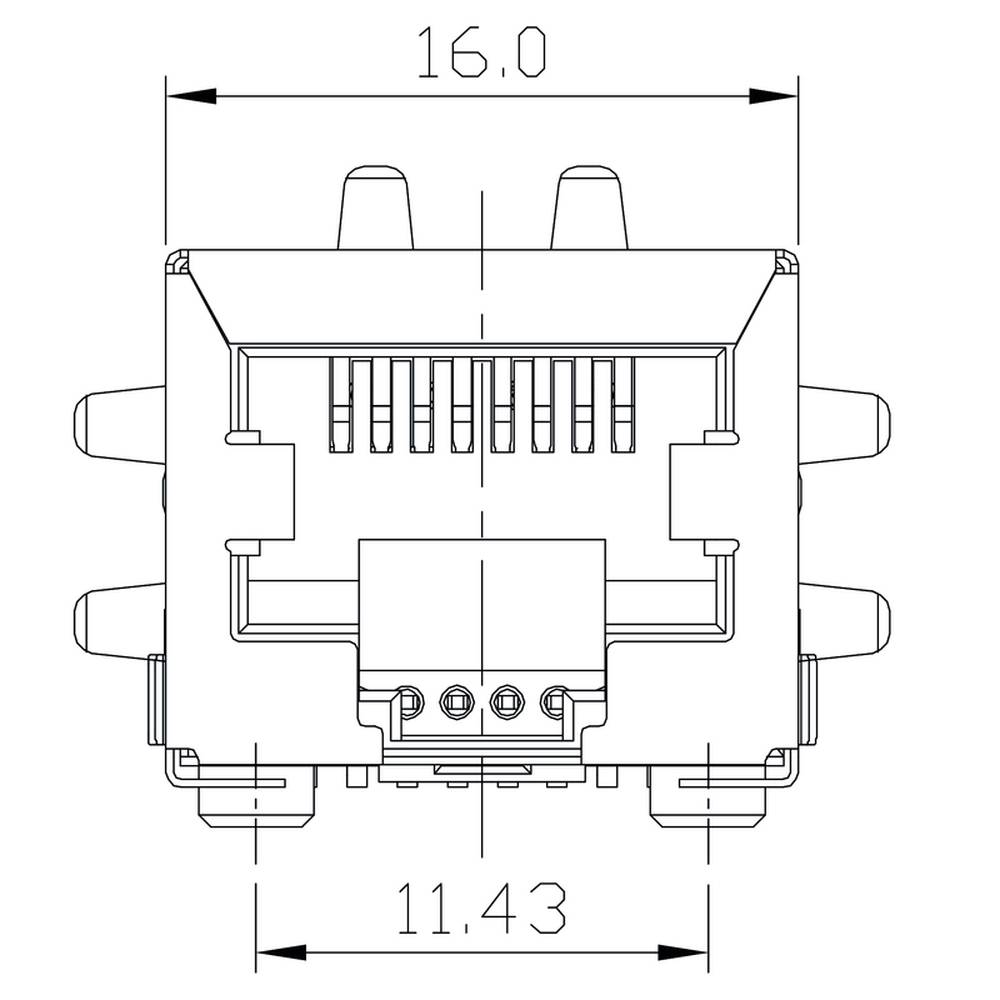

Technical drawing of an electrical connector with dimensions of 16.0 mm width and 11.43 mm height. Surface view.

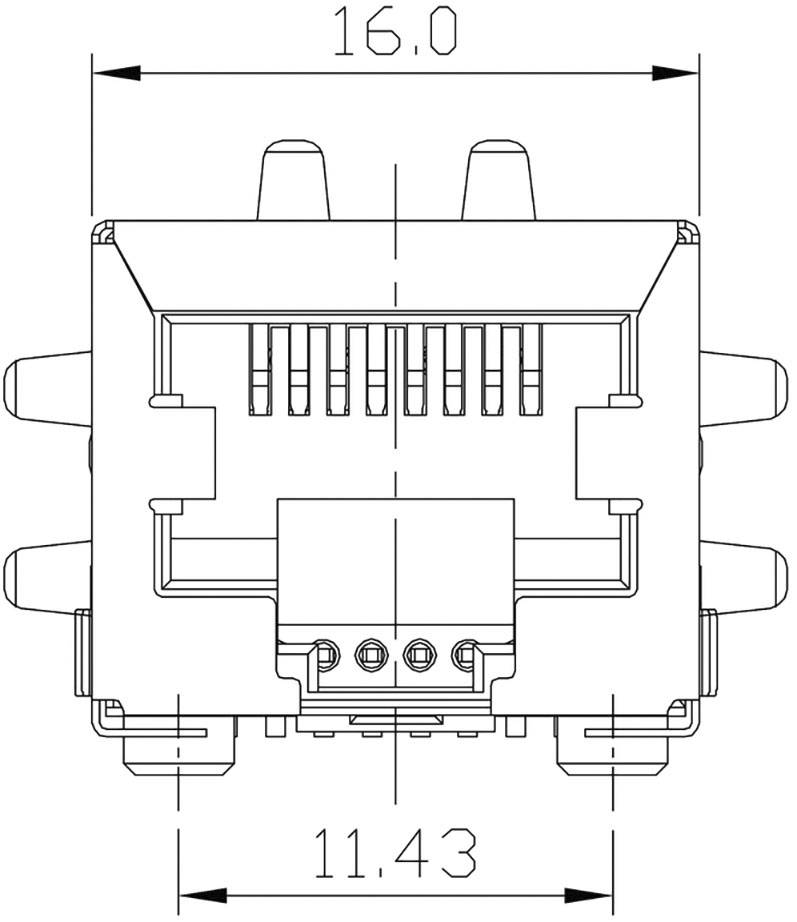

Technical drawing of a connector viewed from above with dimensions: 16.0 mm width and 11.43 mm depth. Lines and pins visible.

1/2

Stroke drawing/circuit diagram

Packaging type

Piece

Product type

RJ45 connector

Connector type

Socket

No. of pins

Specification

100 Mbps

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Height low-tensile: 12.86 mm
Storage temperature: -40 °C - +85 °C
Insulation resistance:> 500 MΩ
Nominal voltage: 125 V/AC
Nominal current: 1.5 A
Voltage strength Contact / Contact: 1000 V/DC
Voltage strength Contact / Screen: 1500 V/DC
Output angle: 90°
Number of solder pins per pole: 1
LED: No
Mounting on the circuit board: SMD solder connection
Grid: 1.27 mm
Screen material: Brass
Screen surface: Nickel-plated
Shielding: Yes
Plug-in cycles: 750
Transmission rate: 10/100 MBit/s
Insulation material: PA 9T
Creepage current strength:> 500
Flammability class: V-0

Packaging type: Piece

Type: RJ45M S1D DE4N RL

Product type: RJ45 connector

Connector type: Socket

No. of pins: 8

: 100 Mbps

Connector standard: RJ45

Connection: SMD
Soldering

Type A: RJ45 socket

No. of rows: 1

Factory colour: Black

Content: 220 pc(s)

Contact material: Phosphorus bronze gold plated

Material: Polyamide

Moisture Sensitiviy Level (MSL): 1

Width: 16 mm

Height: 13.46 mm

Length: 21.55 mm

Features: L-shaped

Max. temperature: +85 °C

Min. temperature: -40 °C

UKCA: not relevant
