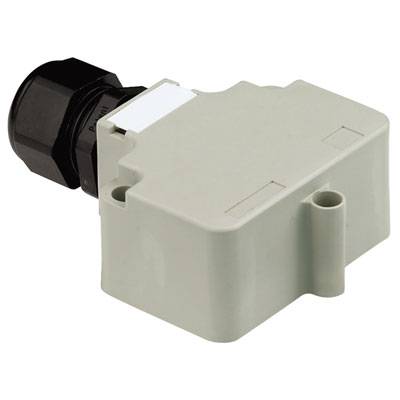

Weidmüller SAI-4/6/8-MH BL3.5 1724750000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
Type
SAI-4/6/8-MH BL3.5
Trunk line
No
Status indicator
No LED
Connection
Screws
Datasheet (PDF)
Technical specifications
- Distribution material: Plastic
- cover sealing material: Viton
- contact material: CuZn
- plug-in cycles: ≤ 50
- insulation stripping length: 100 mm
- distribution outlet: Hood version
- external diameter: 1.2 mm - 1.6 mm
- screwing: M20
- test voltage: 1 kV
- nominal voltage: 10 V - 30 V
- potential separation available: Yes
- drag chain suitability: No.
- Product type
Sensor & actuator box (passive)
- Type
SAI-4/6/8-MH BL3.5
- Trunk line
No
- Status indicator
No LED
- Connection
Screws
- Width
60 mm
IP67
- Max. power rating per slot
4 A
- Total current (direct supply)
10 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Connector cross section (max.)
1.5 mm²
- Connector cross section (min.)
0.08 mm²
- Connector type (distribution boxes)
Screw
- Case material
Polyester
- Weight
88.6 g
- Manufacturer part #
1724750000
- Factory colour
Grey
- Content
1 pc(s)
- Height
41.5 mm
- Power rating (total)
10 A
- Power rating per I/O
2 A
- Cross-section (sensor/actuator wiring)
1.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203174 Weidmüller SAI-4/6/8-MH BL3.5 1724750000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203174 Weidmüller SAI-4/6/8-MH BL3.5 1724750000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s)
Description
Sensor/actuator passive splitter. SAI-passive, IDC, cover version. Compact IDC connection shortens production, commissioning and maintenance work. Knurled nut made of metal-robust, secure handling with minimal effort. The dimensions of the IDC distributor correspond to those of the standard SAI distributor. They are compatible with them. 3-pin design with 1 I/O signal per slot and 4-pin design with 2 each of I/O signals per slot, individual assembly the sensor/actuator cables on site, fast and secure connection by connecting element IDC, protection class IP67.
This text is machine translated.
This text is machine translated.
