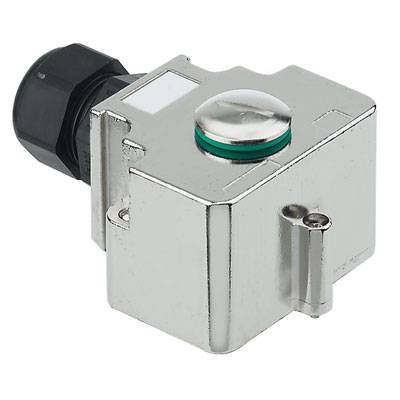

Weidmüller SAI-4/6/8 MH-MH BL 3.5 1724752000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor & actuator box (passive)
Type
SAI-4/6/8 MH-MH BL 3.5
Trunk line
No
Status indicator
No LED
Datasheet (PDF)
Technical specifications
- Distributor material: Metal
- hood sealing material: PUR foamed
- contact material: CuZn
- threaded bushes: CuZn, nickel-plated
- contact carrier material: PBT (UL 94 V0)
- mating cycles: ≤ 50
- LED color for operating function: Green
- LED color for I/O function: Yellow
- distribution outlet: Hood version with M20 outlet
- conductor outer diameter: 10 mm - 14 mm
- screwing: M20
- test voltage: 1 kV
- nominal voltage: 10 V - 30 V
- electrical isolation present: Yes
- Towing chain suitability: No.
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- Type
SAI-4/6/8 MH-MH BL 3.5
- Trunk line
No
- Status indicator
No LED
- Connection
Screws
- Width
60 mm
IP68
- Max. power rating per slot
4 A
- Total current (direct supply)
10 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Connector cross section (max.)
1.5 mm²
- Connector cross section (min.)
0.08 mm²
- Connector type (distribution boxes)
Screw
- Case material
Diecast zinc
- Weight
340 g
- Manufacturer part #
1724752000
- Factory colour
Silver
- Content
1 pc(s)
- Height
55 mm
- Features
EX series compatibility
- Power rating (total)
10 A
- Power rating per I/O
2 A
- Cross-section (sensor/actuator wiring)
1.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203175 Weidmüller SAI-4/6/8 MH-MH BL 3.5 1724752000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 203175 Weidmüller SAI-4/6/8 MH-MH BL 3.5 1724752000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s) Piece
Description
Sensor/actuator passive splitter. SAI-passive, M12, hood version with M20 outlet, yes. Gland: M25 for cable with an external insulation diameter of 13 mm to 18 mm SAI distributor with the M25 cable gland is suitable for following cable types: 21 x 0.50 mm, 18 x 0.75 mm to 21x 0.75 mm, 14 x 1.00 mm up to 20 x 1.00 mm, 8 x 1.50 mm to 16 x 1.50 mm.
