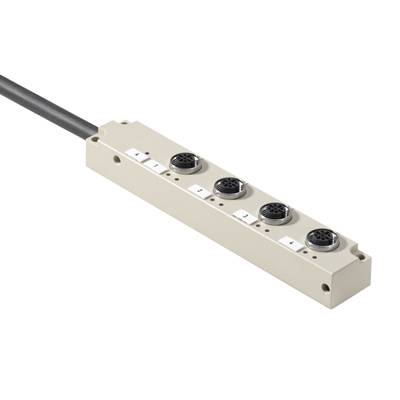

Weidmüller SAI-4-F 4P M12 L 5M 1070650000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
4
No. of splitters
4-way
Type
SAI-4-F 4P M12 L 5M
Datasheet (PDF)
Technical specifications
- Distribution material: Plastic
- contact material: CuZn
- threaded bushes: CuZn, nickel-plated
- contact carrier material: PBT (UL 94 V0)
- sheath material: PUR
- insulation resistance: 109 Ω
- connection thread: M12
- mating cycles: ≤ 50
- LED color for operating function: Green
- LED color for I/O function: Yellow
- insulation stripping length: 100 mm
- distribution outlet: Fixed cable version
- number of poles Cable: 7
- test voltage: 1 kV
- nominal voltage: 10 V - 30 V
- Potential separation available: No
- Towing chain suitability: Yes
- Wire cross-section: 16 x 0.34 mm² + 3 x 1 mm²
- Outer diameter: 7.5 mm
- sheath color: Black
- bending radius min., moving: 10 x cable diameter
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
4
- Type
SAI-4-F 4P M12 L 5M
- Trunk line
Yes
- No. of splitters
4-way
- Status indicator
LED
- Connection
Connector
Open end cable
- Length
144 mm
IP68
- Max. power rating per slot
3 A
- Total current (direct supply)
9 A
- Max. temperature
+80 °C
- Min. temperature
-20 °C
- Connector type (distribution boxes)
Feed
- Case material
PA GF
- Total no. of pins
4
- Weight
505 g
- Manufacturer part #
1070650000
- Factory colour
Grey
- Content
1 pc(s)
- Cable length
5 m
- Number of pins
4
- Height
18.2 mm
- Power rating (total)
9 A
- Power rating per I/O
2 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 196559 Weidmüller SAI-4-F 4P M12 L 5M 1070650000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 196559 Weidmüller SAI-4-F 4P M12 L 5M 1070650000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Description
Sensor/actuator passive splitter. M12, Fixkabelversion, 5 m, yes. M12 splitter are offered in all possible designs. The 4.6 or 8 M12 slots are 4 or 5-pin. The Collective outlet is either in the form of fixed cable version, hood variants for self or connect with M23. There are also some special versions. There are 1 to 1 distributor for the free choice of the connections or distributor for the Ex zone 1.
