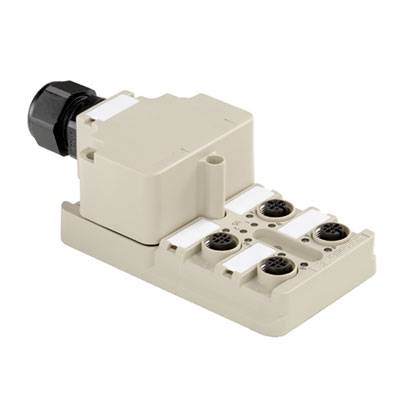

Weidmüller SAI-4-M 5P M12 ECO 1892100000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
No. of signal spaces
4
No. of splitters
4-way
Type
SAI-4-M 5P M12 ECO
Trunk line
No
Datasheet (PDF)
Highlights & Details
Sensor/Actuator Passive Splitter
- SAI-4-M5P M12 ECO
Technical specifications
- Distributor material: Plastic
- cover sealing material: Viton
- contact material: CuZn
- threaded bushes: Pocan
- contact carrier material: PBT (UL 94 V0)
- Insulation resistance: 109 Ω
- Connection thread: M12
- plug-in cycles: ≤ 50
- LED color for operating function: Green
- LED color for I/O Function: Yellow
- distribution outlet: Hood version
- : M20
- Test voltage: 1 kV
- Nominal voltage: 10 V - 30 V
- Potential separation available: Yes
- Towing chain suitability No.
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
4
- Type
SAI-4-M 5P M12 ECO
- Trunk line
No
- No. of splitters
4-way
- Status indicator
LED
- Connection
Screws
- Length
102 mm
IP68
- Max. power rating per slot
4 A
- Total current (direct supply)
10 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Connector cross section (max.)
1.5 mm²
- Connector cross section (min.)
0.08 mm²
- Connector type (distribution boxes)
Screw
- Case material
Polyester
- Total no. of pins
5
- Weight
192 g
- Manufacturer part #
1892100000
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
5
- Power rating (total)
10 A
- Power rating per I/O
2 A
- Cross-section (sensor/actuator wiring)
1.5 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204581 Weidmüller SAI-4-M 5P M12 ECO 1892100000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204581 Weidmüller SAI-4-M 5P M12 ECO 1892100000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s)
Description
Sensor/actuator passive splitter. M12, hood version, yes. M12 splitter are offered in all possible designs. The 4.6 or 8 M12 slots are 4 or 5-pin. The Collective outlet is either in the form of fixed cable version, hood variants for self or connect with M23. There are also some special versions. There are 1 to 1 distributor for the free choice of the connections or distributor for the Ex zone 1.
