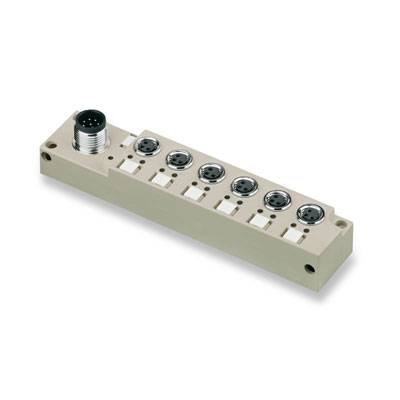

Weidmüller SAI-6-S 3P M8 L 1828730000 Sensor & actuator box (passive) M8 splitter + steel thread 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor & actuator box (passive)
No. of signal spaces
6
No. of splitters
6-way
Type
SAI-6-S 3P M8 L
Trunk line
No
Datasheet (PDF)
Highlights & Details
Sensor/Actuator Passive Splitter
- SAI-6-S3P M8 L
Technical specifications
- Distributor material: Plastic
- contact material: CuZn
- threaded bushes: CuZn, nickel-plated
- contact carrier material: PBT (UL 94 V0)
- Insulation resistance: 109 Ω
- Connection thread: M8
- LED Color for operating function: Green
- LED Color for I/O Function: Yellow
- insulation length: 100 mm
- Distribution outlet: With M12 outlet, 8-pin, A-coded
- Test voltage: 1 kV
- Nominal voltage: 10 V - 30 V
- Towing chain suitability No.
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
6
- Type
SAI-6-S 3P M8 L
- Trunk line
No
- No. of splitters
6-way
- Status indicator
LED
- Connection
M8 socket
IP68
- Max. power rating per slot
2 A
- Total current (direct supply)
6 A
- Max. temperature
+80 °C
- Min. temperature
-25 °C
- Connector type (distribution boxes)
M12 socket
- Case material
Polyester
- Total no. of pins
3
- Weight
82 g
- Manufacturer part #
1828730000
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
3
- Power rating (total)
6 A
- Power rating per I/O
1 A
Black
Plastic
-25-80 °C
None
None
Gold
IP68
TRUE
3
PBT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 204125 Weidmüller SAI-6-S 3P M8 L 1828730000 Sensor & actuator box (passive) M8 splitter + steel thread 1 pc(s)
User & Safety Instructions
User & Safety Instructions 204125 Weidmüller SAI-6-S 3P M8 L 1828730000 Sensor & actuator box (passive) M8 splitter + steel thread 1 pc(s)
Description
Sensor/actuator passive splitter. SAI-passive, M8, with M12 outlet, yes. The new narrow M8 line from Weidmüller. This product family is distinguished by marking it at all slots. Even the 4-way distributor with 8-pin M12 has at all M8 slots a sufficiently large markers. Furthermore, this distributor shorter than many commercially available M8 types. Very narrow, short and Flat M8 distributor. The family is supplied with 4 up to 12 M8 slots, 3- or 4-pin. Even mixed populations of the M8 are at the customer's request. The M8 line is equipped with cross holes.
