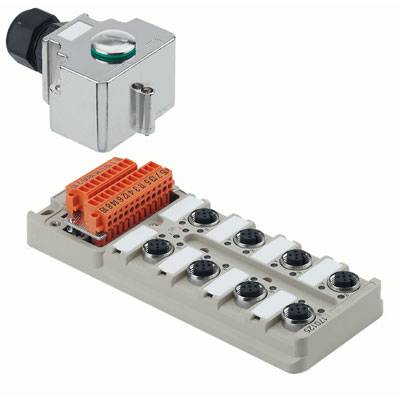

Weidmüller SAI-8-MH-5P M12 1701252000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
8
No. of splitters
8-way
Type
SAI-8-MH-5P M12
Datasheet (PDF)
Highlights & Details
Sensor/Actuator Passive Splitter
- SAI-8-MH-5P M12
Technical specifications
- Hood: Die-cast zinc
- Distribution material: Metal
- Cover material: PUR foamed
- Contact material: CuZn
- Thread sockets: CuZn, nickel-plated
- Contact carrier material: PBT (UL 94 V0)
- Insulation resistance: 109 Ω
- Connection thread: M12
- Plug cycles: ≤ 50
- LED Color for operating function: Green
- LED Color for I/O Function: Yellow
- Distribution outlet: Hood version with M20 External
- conductor diameter
- Screw connection: 10 mm - 14 mm: M20
- Test voltage: 1 kV
- Nominal voltage: 10 V - 30 V
- Potential separation available: Yes
- Towing chain suitability: No.
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
8
- Type
SAI-8-MH-5P M12
- Trunk line
Yes
- No. of splitters
8-way
- Status indicator
LED
- Connection
Screws
- Width
60 mm
- Length
152 mm
IP68
- Max. power rating per slot
4 A
- Total current (direct supply)
10 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Connector cross section (max.)
1.5 mm²
- Connector cross section (min.)
0.08 mm²
- Connector type (distribution boxes)
M12 socket
- Case material
Plastic
- Total no. of pins
5
- Weight
563 g
- Manufacturer part #
1701252000
- Factory colour
Silver
- Content
1 pc(s)
- Number of pins
5
- Height
55 mm
- Power rating (total)
10 A
- Power rating per I/O
2 A
- Cross-section (sensor/actuator wiring)
1.5 mm²
60
55 mm
Silver
152 m
Plastic
-20-90 °C
None
None
Gold
IP68
TRUE
3
PBT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203118 Weidmüller SAI-8-MH-5P M12 1701252000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 203118 Weidmüller SAI-8-MH-5P M12 1701252000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Description
Sensor/actuator passive splitter. SAI-passive, M12, hood version with M20 outlet, yes. Gland: M25 for cable with an external insulation diameter of 13 mm to 18 mm SAI distributor with the M25 cable gland is suitable for following cable types: 21 x 0.50 mm, 18 x 0.75 mm to 21x 0.75 mm, 14 x 1.00 mm up to 20 x 1.00 mm, 8 x 1.50 mm to 16 x 1.50 mm.
