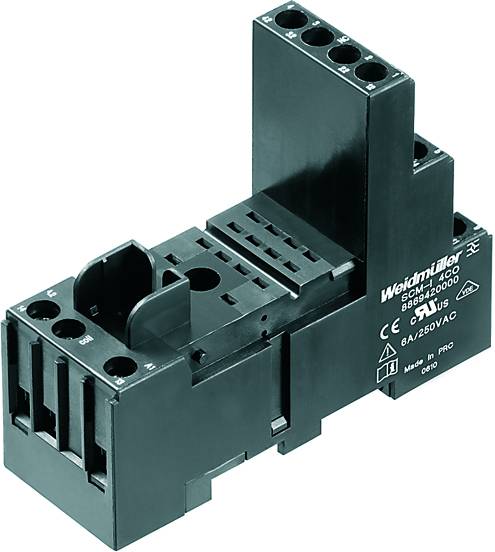

Weidmüller SCM-I 4CO Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 70 x 27.2 x 77 mm 10 pc(s
EAN:
Part number:
Item no:
Product type
Relay socket
Connection
Screws
Mounting type
DIN rail
Content
10 pc(s)
Factory colour
Black
Datasheet (PDF)
Technical specifications
- Wire stripping length rated connection: 8 mm
- Tightening torque, max. 0.7 Nm
- Flammability class according to UL 94: V-0
- Continuous current 6 A
- Insulation material class IIIa
- Clamping range, rated connection 2.5 mm²
- Clamping range, max. 2.5 mm²
- Creepage and air distance input - output: ≥ 4 mm
- Storage temperature: -40 °C…70 °C
- Conductor cross-section, single-wire, max. 2.5 mm²
- Conductor cross-section, fine strand, max. 2.5 mm²
- Nominal switching voltage 250 V AC
- Standards: IEC 61810-1, UL508
- Product note: IP20 without a connected conductor with the drawbar connection fully open.
- Switching voltage AC, max. 250 V
- Voltage strength input - output: 2.5 kVeff / 1 min.
- Depth: 61.5 mm
- Over voltage category III
- Pollution level: 2
- Product type
Relay socket
- Content
10 pc(s)
- Factory colour
Black
- Connection
Screws
- Mounting type
DIN rail
- Operating voltage
250 V
- Contact type
4 change-overs
- Industrial packaging
Yes
- Weight
63.87 g
- Compatible with
Weidmüller
- Compatible with series
Weidmüller RIDERS series
IP20
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Width
27.2 mm
- Height
77 mm
- Length
70 mm
- Dim
(L x W x H) 70 x 27.2 x 77 mm
- RoHS-compliant
Yes
- Type
SCM-I 4CO
- Depth
61.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 391750 Weidmüller SCM-I 4CO Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 70 x 27.2 x 77 mm 10 pc(s
User & Safety Instructions
User & Safety Instructions 391750 Weidmüller SCM-I 4CO Relay socket Compatible with series: Weidmüller RIDERS series (L x W x H) 70 x 27.2 x 77 mm 10 pc(s
Description
Relay socket. RIDERSERIES, Continuous current: 6 A, screw connection
This text is machine translated.
This text is machine translated.
