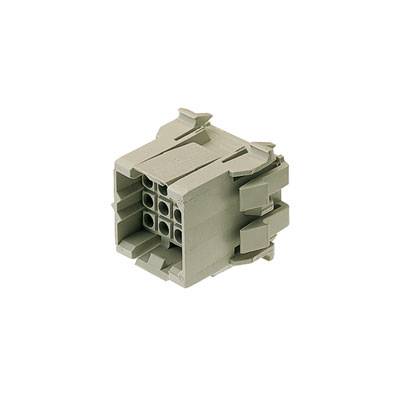

Weidmüller SIL socket (standard) RSV Total number of pins 36 Contact spacing: 5 mm 1419100000 10 pc(s)
EAN:
Part number:
Item no:
Product type
SIL socket (standard)
Connector type
Socket, built-in
No. of rows
4
Series
RSV
CS
5 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 10 pc(s)
- No. of rows: 4
- Total number of pins: 36
Technical specifications
- Product type
SIL socket (standard)
- Connector type
Socket, built-in
- No. of rows
4
- Connector system
wire-to-board
- Series
RSV
- CS
5 mm
- Pins per row
9
- Total number of pins
36
- Width
33 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
10 pc(s)
- AWG max.
12
- AWG (min.)
26
- Dim
(L x W x H) 68 x 33 x 132 mm
- Connection
Crimp
- Case material
Thermoplastic
- Manufacturer part #
1419100000
- Factory colour
Grey
- Industrial packaging
Yes
- Insulation material
Thermoplastic
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
600 V
- Height
132 mm
- Length
68 mm
- max. cross section
3.3088 mm²
- Min. cross section
0.1288 mm²
- RoHS-compliant
Yes
IP20 (when connected)
- Max. temperature
+100 °C
- Min. temperature
-25 °C
- Type
RSV1,6 S36 GR BX
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 324003 Weidmüller SIL socket (standard) RSV Total number of pins 36 Contact spacing: 5 mm 1419100000 10 pc(s)
User & Safety Instructions
User & Safety Instructions 324003 Weidmüller SIL socket (standard) RSV Total number of pins 36 Contact spacing: 5 mm 1419100000 10 pc(s)
Description
PCB connector. Pin-plug, 5.00 mm, number of poles: 36, crimp connection, clamping range, max. width: 3.31 mm², Box. Right-angle connector for use with crimp contacts. You can use it both as a free-coupling, as well as with the PCB versions, can be used. The bewahrleisten crimp contacts a high packing density. Used here CS 1.6 or CB 1.6 contacts. The connectors are encoded and with the counterpiece lockable. Supplied in a carton. 0.13 - 3.31 mm² (IEC) / 26 - 12 AWG (UL), 630 V (IEC) / 600 V (UL), 17 A (IEC) / 10 A (UL).
