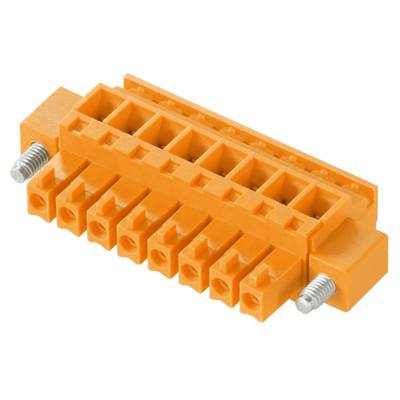

Weidmüller Socket housing cable BC/SC Total number of pins 12 Contact spacing: 3.81 mm 1940080000 50 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
BC/SC
CS
3.81 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 12
Our service for you
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
BC/SC
- Features
+ screw lock
- CS
3.81 mm
- Pins per row
12
- Total number of pins
12
- Width
56.14 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
50 pc(s)
- AWG max.
16
- AWG (min.)
28
- Stripping length (max.)
7.00 mm
- Dim
(L x W x H) 10.50 x 56.14 x 19.10 mm
- Connection
Screw terminal
Plug
- Case material
PA GF
- Manufacturer part #
1940080000
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Connector contact surface
Tin plated
- Nominal voltage
300 V
- Height
19.10 mm
- Length
10.50 mm
- max. cross section
1.50 mm²
- Min. cross section
0.20 mm²
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
BCZ 3.81/12/90F SN OR BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 376417 Weidmüller Socket housing cable BC/SC Total number of pins 12 Contact spacing: 3.81 mm 1940080000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 376417 Weidmüller Socket housing cable BC/SC Total number of pins 12 Contact spacing: 3.81 mm 1940080000 50 pc(s)
Description
PCB connector. Jack plug, 3.81 mm, number of poles: 12, 90° receptacle, max.: 1.5 mm², Box. Socket strips receptacle with screw and bracket for. For the free design of the connection level are three-wire outlet direction available: 180° head straight for the plug-in direction, 90° conductor vertically toward the top of the plug-in direction, 270° conductor vertically downwards to the plug-in direction. For the different requirements for the connection can be selected between three housing forms: standard housing without flange. Flange with screw (F). Flange with the patented Weidmüller latch (LR) for tool-free, stress-free lock and cutting. The Weidmüller connectors in the grid 3.81 mm (0.15 inch) are layout - compatible with common connectors and offer space for printing and barcode. 0.20 - 1.5 mm²; (IEC) / 28 - 16 AWG (UL), 250 V (IEC) / 300 V (UL), 17.5 A (IEC) / 10 A (UL).
