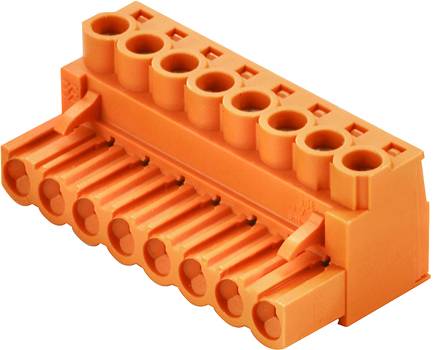

Weidmüller Socket housing cable BL/SL Total number of pins 2 Contact spacing: 5.08 mm 1943580000 180 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, right angle
No. of rows
1
Series
BL/SL
CS
5.08 mm
Datasheet (PDF)
Highlights & Details
PCB connector
- Content: 180 pc(s)
- No. of rows: 1
- Total number of pins: 2
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, right angle
- No. of rows
1
- Connector system
wire-to-board
- Series
BL/SL
- CS
5.08 mm
- Pins per row
2
- Total number of pins
2
- Width
20.10 mm
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Content
180 pc(s)
- AWG max.
12
- AWG (min.)
30
- Stripping length (max.)
7.00 mm
- Dim
(L x W x H) 10.16 x 20.10 x 16.00 mm
- Connection
Screw terminal
Plug
- Case material
PBT
- Manufacturer part #
1943580000
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Connector contact surface
Tin plated
- Nominal voltage
300 V
- Height
16.00 mm
- Length
10.16 mm
- max. cross section
4.00 mm²
- Min. cross section
0.20 mm²
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
BLZP 5.08/02/180 SN OR BX
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 377599 Weidmüller Socket housing cable BL/SL Total number of pins 2 Contact spacing: 5.08 mm 1943580000 180 pc(s)
User & Safety Instructions
User & Safety Instructions 377599 Weidmüller Socket housing cable BL/SL Total number of pins 2 Contact spacing: 5.08 mm 1943580000 180 pc(s)
Description
PCB connector. Jack plug, 5.08 mm, number of poles: 2, 180°, receptacle, max.: 4 mm², Box. Receptacle with screw and bracket for conductor connection with straight (180°) outgoing direction. Enough space for label or barcode. Attachment via flange or latch. Comes with a built-in plusminus screw, "Wire Guard" (prevents dead contacts). Factory-packaged with open bracket. 0.2 - 2.5 mm² (IEC) / 26-12 AWG (UL), 400 V (IEC) / 300 V (UL), 19 A (IEC) / 15 A (UL).
